Revopoint Trackit SR CMM Edition 3D Scanner with Optical Tracking
Revopoint Trackit SR CMM Edition is a professional 3D scanning system that combines a handheld Scanner with an optical Tracker that determines the scanner’s position in space in real time. In Track Scan mode, objects can be digitized without applying markers directly to their surfaces. The CMM Edition expands the capabilities of the Standard Edition with accessories for measurement tasks and a one-year Revo Measure license, making the package suitable not only for creating 3D models but also for 3D measurements, geometry inspection, and engineering verification of parts.
Advantages of Revopoint Trackit SR CMM Edition
- Optical tracking without markers on the part. In Track Scan mode, the operator can scan an object without first applying markers to its surface. The Tracker determines the Scanner’s spatial position in real time.
- High system accuracy. The Scanner provides a single-frame accuracy of 0.02 mm, while the volumetric accuracy of the tracking system is 0.025 mm + 0.04 mm × L (m).
- Scanning speed up to 2,000,000 points/s. High 3D data acquisition speed helps digitize parts, large surfaces, and objects with complex geometry more efficiently.
- Three blue laser modes. Fine Mode uses 30 crossed laser lines, Far Mode uses 17 parallel laser lines, and Deep Hole Mode uses a single laser line for recesses and hard-to-reach areas.
- Wireless connection via Wi-Fi 6. The Scanner and Tracker can transmit data to a PC without a permanent cable connection, making it easier for the operator to move around the object.
- Works with objects of different sizes. The recommended object size range is from 0.01 to 4 m.
- Up to 2.5 hours of Scanner battery life. The removable battery can be replaced during long scanning sessions.
- Revo Measure included with the CMM Edition. The one-year license enables the use of scanned data for measurements, quality control, and engineering inspection.
Optical Tracking and Marker-Free 3D Scanning

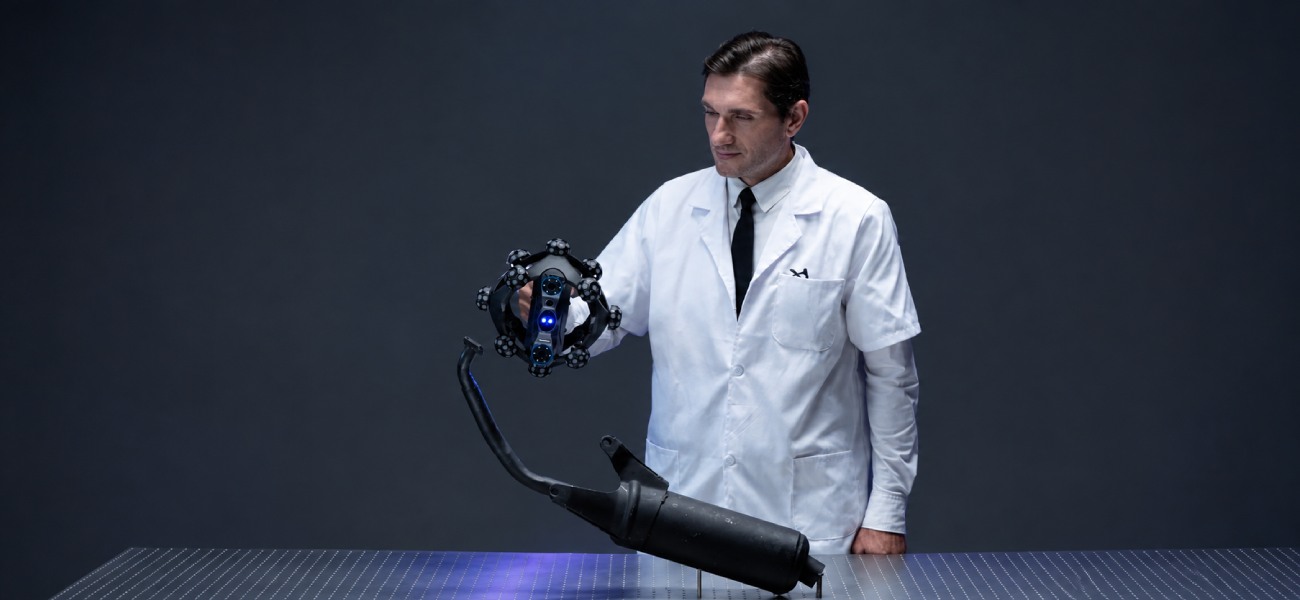

In Track Scan mode, the position of the handheld Scanner is determined by the Tracker, which continuously monitors its movement within the working area. This allows the Revopoint Trackit SR CMM Edition to perform 3D scanning without markers applied directly to the object’s surface. This approach reduces preparation time and is convenient for large parts, automotive components, complex surfaces, and objects where applying markers is undesirable.
Markers are still required for certain scanning scenarios. If the Scanner is used independently in Marker Scan Mode, markers help correctly align the captured frames. The package includes both magnetic and adhesive markers, allowing the scanning method to be selected according to the geometry and size of the object.
Three Trackit SR Laser Scanning Modes
Fine Mode with 30 Crossed Blue Laser Lines
Fine Mode is designed for fast and detailed geometry digitization. Thirty crossed blue laser lines help capture small features, contours, and complex surfaces. This mode is also suitable for working with black, metallic, and reflective parts.
Far Mode with 17 Parallel Blue Laser Lines
Far Mode is intended for larger parts and surfaces that are more convenient to scan from a greater distance. The working distance is 250–500 mm. Seventeen parallel laser lines are suitable for rapidly capturing the geometry of large objects and surfaces with relatively few distinctive geometric features.
Deep Hole Mode with a Single Blue Laser Line
Deep Hole Mode is used for scanning deep holes, grooves, narrow areas, and hard-to-reach geometry. A single blue laser line helps capture data in areas where multi-line modes may have difficulty covering the entire surface. The working distance is 200–400 mm.
3D Scanning Accuracy and Speed
Revopoint Trackit SR CMM Edition provides a Scanner single-frame accuracy of up to 0.02 mm. The volumetric accuracy of the optical tracking system is 0.025 mm + 0.04 mm × L (m), where L represents the working distance in meters.
The maximum scanning speed reaches 2,000,000 points/s, enabling fast 3D data acquisition from objects of different sizes and complexity. The Tracker operates at a distance of 800–2500 mm and provides a tracking volume of up to 3 m³. The Scanner’s working distance depends on the selected laser mode and ranges from 200 to 500 mm.
Wireless Operation and Mobility
Trackit SR supports Wi-Fi 6 for wireless connection of the Scanner and Tracker to a computer. This reduces the number of cables in the working area and gives the operator greater freedom of movement when scanning large parts, automotive body components, and other large objects.
The Scanner operates from a removable battery with a stated runtime of up to 2.5 hours. The package includes two batteries and a charger. If required, the Scanner can also be used independently of the Tracker in a marker-based scanning mode.
CMM Edition and 3D Measurement in Revo Measure
Revopoint Trackit SR CMM Edition is based on the Standard Edition package but additionally includes a Ball Plate, Battery Grip, Battery Grip power cable, and a one-year Revo Measure license. These additional components make the CMM Edition better suited to measurement and inspection tasks.
Revo Measure is used to analyze 3D scan results, check part dimensions and geometry, compare acquired data, and perform engineering inspections. This makes the CMM Edition especially suitable for applications where digitization is followed by quality control and 3D measurement.
Applications of Revopoint Trackit SR CMM Edition
Revopoint Trackit SR CMM Edition is used in manufacturing, quality control, reverse engineering, and engineering applications where it is necessary not only to create a 3D model but also to inspect the geometry of a physical part:
- geometry inspection of parts based on 3D scanning results;
- quality control of manufactured components;
- 3D measurement and engineering inspection of data in Revo Measure;
- reverse engineering of parts and assemblies;
- digitization of industrial components;
- inspection of manufactured products;
- comparison of actual part geometry;
- creation of 3D models of physical objects for further engineering work;
- automotive 3D scanning and inspection of body components;
- digitization of large parts and structures.

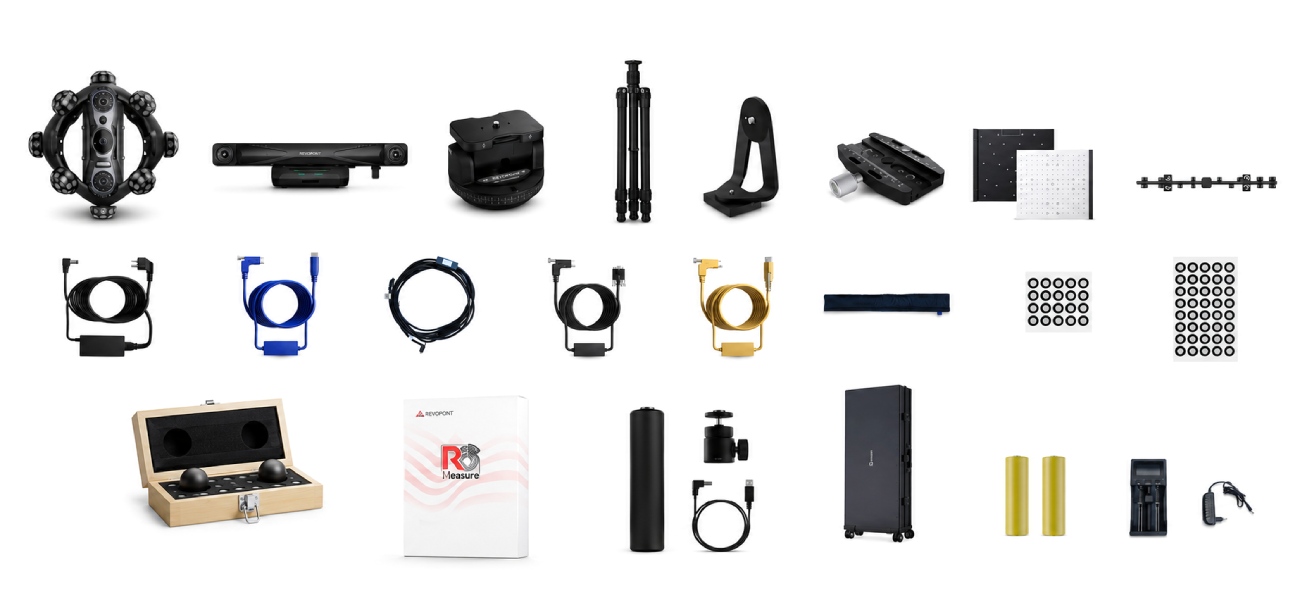

Revopoint Trackit SR CMM Edition Package Contents
The Revopoint Trackit SR CMM Edition package includes all of the main components of the Standard Edition, along with additional accessories and software for measurement tasks.
- Scanner. Handheld 3D scanner for capturing object geometry.
- Tracker. Optical tracking module for determining the Scanner’s spatial position.
- Auto Calibration Dual-axis Gimbal. Dual-axis mechanism for automated calibration.
- Tripod. Tripod for positioning the equipment during operation.
- Gimbal Adapter Plate. Adapter plate for mounting the calibration mechanism.
- Quick Release Clamp. Quick-release clamp for installing components.
- Calibration Board. System calibration board.
- Calibration Pole. Calibration pole for Trackit SR setup.
- Power Adapter. Power supply adapter.
- Tracker PC Cable. Cable for connecting the Tracker to a computer.
- Scanner PC Cable. Cable for connecting the Scanner to a computer.
- Scanner Cable. Cable for connecting the Scanner and Tracker.
- Gimbal Cable. Cable for connecting the calibration mechanism to the Tracker.
- Cable Sleeve. Protective sleeve for organizing cables.
- 20 Magnetic Markers. Markers for corresponding positioning scenarios.
- 200 Adhesive Markers. Markers for Marker Scan Mode and other workflows.
- Case With Wheels. Wheeled case for storing and transporting the system.
- Scanner Battery × 2. Two removable batteries for the Scanner.
- Scanner Battery Charger. Charger for the Scanner batteries.
- Ball Plate. Additional CMM Edition component for measurement applications.
- Revo Measure, 1-year license. Software for 3D measurement, quality control, and engineering inspection.
- Battery Grip. Additional component included with the CMM Edition.
- Battery Grip Power Cable. Cable for supplying power to the Battery Grip.
Revopoint Trackit SR CMM Edition Technical Specifications
Trackit SR 3D Scanner
| Parameter | Value |
| Single-frame accuracy | 0.02 mm |
| Minimum fused point distance | up to 0.05 mm |
| Scanning speed | up to 2,000,000 points/s |
| Acceptance test method | VDI/VDE 2634, Part 3; ISO 10360-13 |
| Working distance | crossed laser lines 200–400 mm / parallel laser lines 250–500 mm / single laser line 200–400 mm |
| Capture area at minimum distance | 123 × 130 mm at a distance of 200 mm |
| Capture area at maximum distance | 330 × 325 mm at a distance of 500 mm |
| Wi-Fi | Wi-Fi 6 |
| Operating temperature | 0–30 °C |
| Export formats | PLY, OBJ, STL, ASC, 3MF, GLTF, FBX |
| Recommended object size | 0.01–4 m |
| Dimensions | 250 × 250 × 177 mm |
| Weight | 1.0 kg |
Tracker
| Parameter | Value |
| Working distance | 800–2500 mm |
| Volumetric tracking accuracy | 0.025 mm + 0.04 mm × L (m) |
| Minimum tracking area | 587 × 569 mm at a distance of 800 mm |
| Maximum tracking area | 2075 × 1778 mm at a distance of 2500 mm |
| Tracking volume | 3 m³ |
| Wi-Fi | Wi-Fi 6 |
| Tracking spectrum | NIR, near-infrared range |
| User recalibration | Manual calibration |
| Supported accessories | Calibration board, calibration pole, anchor block, battery grip |
| Dimensions | 441 × 111 × 103 mm |
| Weight | 1.5 kg |
Getting Started with Revopoint Trackit SR
Before starting 3D scanning, select the appropriate workflow, correctly position the Scanner and Tracker, and determine whether markers are required for the specific object. The main calibration, setup, and scanning operations are performed through Revo Track. The video demonstrates the basic steps for preparing the Revopoint Trackit SR for operation.
Tips for Working with Revopoint Trackit SR CMM Edition
- Maintain the correct Tracker working distance. During Track Scan, the Scanner must remain within the tracking area, and the distance to the working area should stay within the 800–2500 mm range.
- Use markers in the appropriate modes. Marker-free scanning applies when working with the Tracker, while standalone Marker Scan Mode requires reference markers.
- Check calibration before measurement tasks. This is particularly important before geometry inspection and working with data in Revo Measure.
- Monitor battery levels. The package includes two Scanner batteries and a charger, while the CMM Edition additionally includes a Battery Grip.
- Follow laser safety guidelines. Avoid looking directly into the laser emission and do not place mirror-like surfaces directly in the path of the laser beam.
