- Stock: In Stock
- Model: Frame small&medium

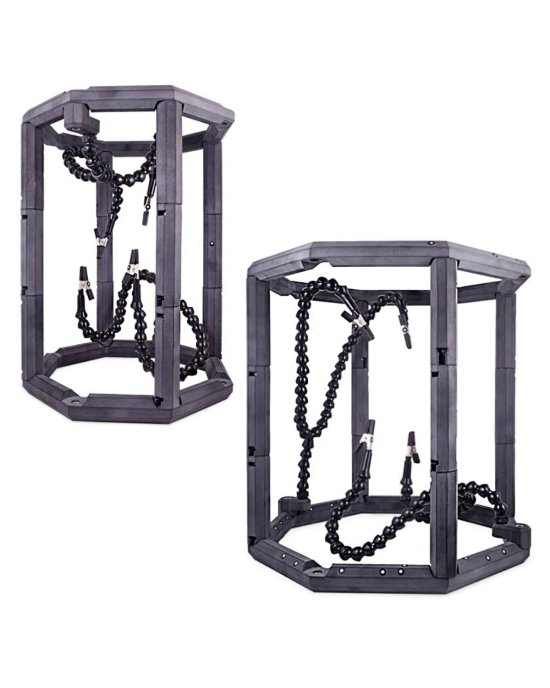

2 AESUB Demountable Frames for Precise Scanning
The set consists of two frames—one with a diameter of 200 mm and the other with 300 mm, made of a carbon fiber composite (carbon fiber reinforced with a printed material). The frames are designed for professional scanning of small and medium-sized parts. Thanks to the demountable design and the convenient carrying case included in the set, the AESUB kit is easy to carry and transport.
Contents of the 2-Frame Scanning Kit
- 1 frame Ø 200 mm
- 1 frame Ø 300 mm
- 8 screw extension rods, 100 mm long
- 4 extension rods with clamps (100 mm)
- 2 metal levers with "crocodile" holders
- 2 supports for metal levers
- 4 "crocodile" type clamps
- 1 hex key
- 1 hard case for storage and transport
Shape, Material, and Design Features of AESUB Scanning Frames
The frames have a circular shape with clearly defined diameters—200 mm and 300 mm—which allows for easy fixation and encirclement of small and medium-sized parts. The material is carbon fiber, which combines high strength with minimal weight, and also provides the structural rigidity necessary for stable positioning and precise scanning.
The frames have a modular design, which means they can be quickly adapted for specific tasks: extension rods and clamps easily change the conditions for fixing a part, and the demountable nature simplifies transport and storage.
The packaging is a durable case that ensures compact storage of all components and ease of transport, while also protecting the kit from damage. AESUB accessories are known for their high quality and functionality. They help you obtain much more accurate digital copies of objects in a shorter period of time.
Advantages of Using the Two-Frame Kit
Flexibility for Different Object Sizes
The 200 mm frame is ideal for small parts.
The 300 mm frame is suitable for medium-sized objects.
High Stability and Precision
The lightness and rigidity of the carbon fiber frames minimize vibrations and ensure the object's stable position.
The set of components allows for reliable fixation of a part in any position.
Convenience and Mobility
The modular design allows for quick assembly/disassembly of the frame for the required tasks.
The case ensures the safety of the components during transport.
Complete Kit for Uninterrupted Work
All necessary accessories are already included: extenders, clamps, holders, and keys. This eliminates the need to purchase additional items and allows you to start scanning immediately.
Compatibility with Reference Markers
The frames work perfectly with the AESUBdots system, allowing you to optimize the scanning process and increase accuracy due to the presence of reference markers in the frame.
Areas of Application for AESUB Scanning Frames
- Quality control and inspection of serial parts
- Reverse engineering: precise digitalization of forms
- Creation of 3D models and object archiving
- Artifact and museum digitalization of holdings
- Industrial applications where stability and repeatability of scanning are important
The AESUBframe 2-frame kit is a professional, flexible, and ready-to-use solution that allows for easy and precise scanning of parts of various sizes. The round shape of the frames and the well-thought-out design, made of strong and lightweight carbon fiber, are harmoniously combined with a full set of additional accessories.
The ability to adapt to different conditions and the inclusion of a case for transport make this kit an excellent choice for specialists who value precision, mobility, and readiness to work "right out of the box."
