3D scanner SHINING 3D FreeScan Combo

Hybrid 3D scanner FreeScan Combo buy in Ukraine

Shining 3D offers a new scanner in the line of its metrology 3D scanners and presents the FreeScan Combo hybrid 3D scanner, which you can buy in our 3DScanner.com.ua store. Our store offers the best price for the FreeScan Combo 3D scanner and free training on how to use the scanner.

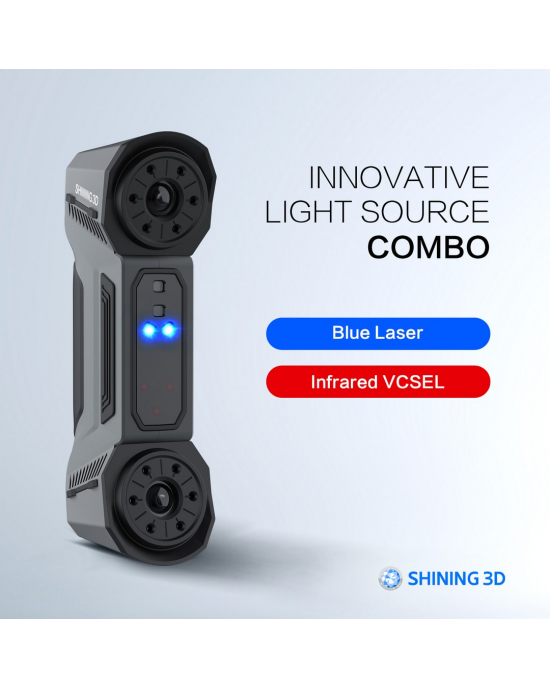

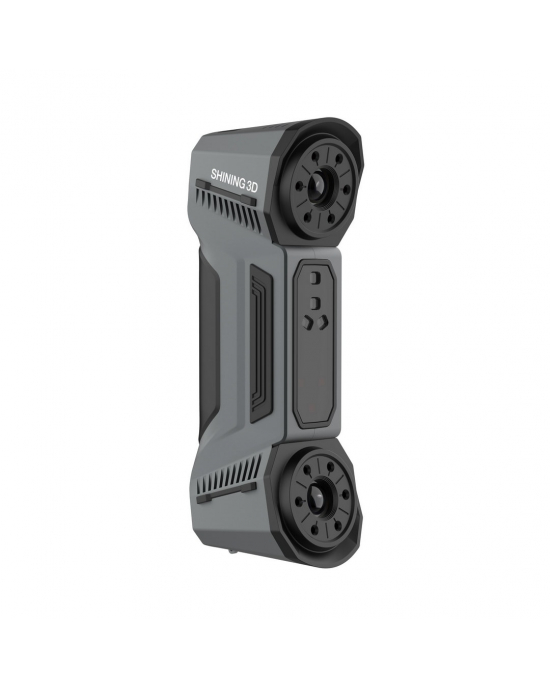

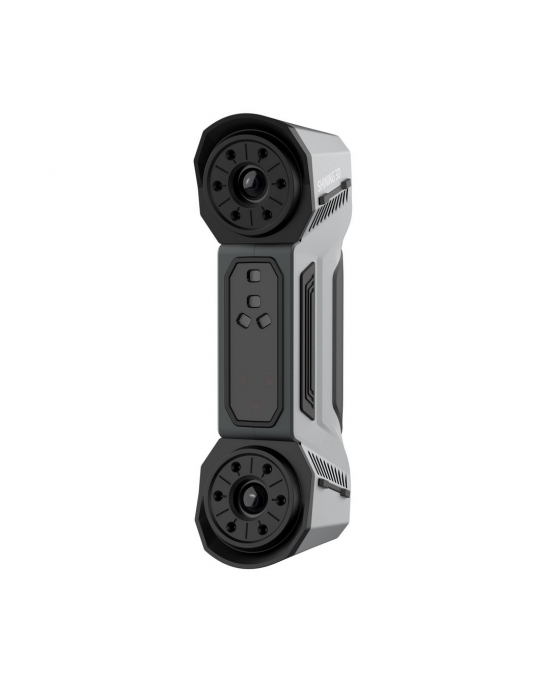

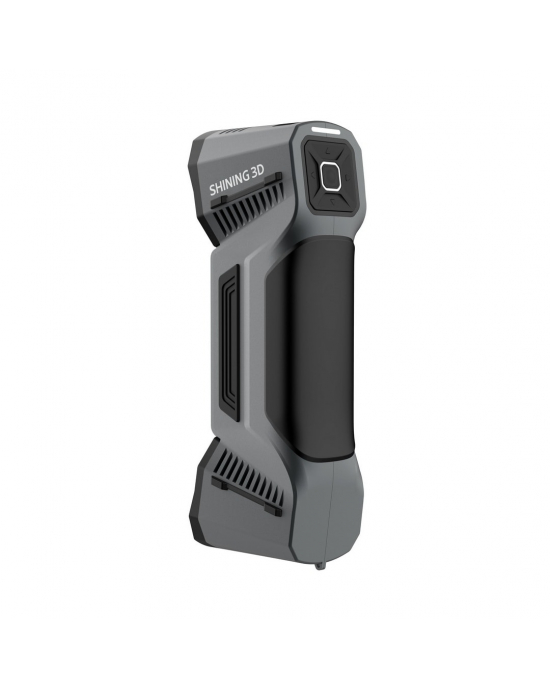

The FreeScan Combo uses a combination of blue laser line and infrared light scanning technologies, which expands the scanner's application capabilities. The powerful FreeScan Combo has two light sources in an ultra-compact body measuring only 193*63*53 mm, making it an easy-to-use and versatile scanner. It is equipped with both blue laser and VCSEL infrared technology and weighs only 620 g.

Thanks to its various scanning modes and technologies, the FreeScan Combo can adapt to many applications. It delivers the metrological precision, fine scanning, and high accuracy of the FreeScan series - for metrological verification, reverse engineering, product design, additive manufacturing, and other demanding applications in a wide range of sectors.

Fast and accurate FreeScan Combo

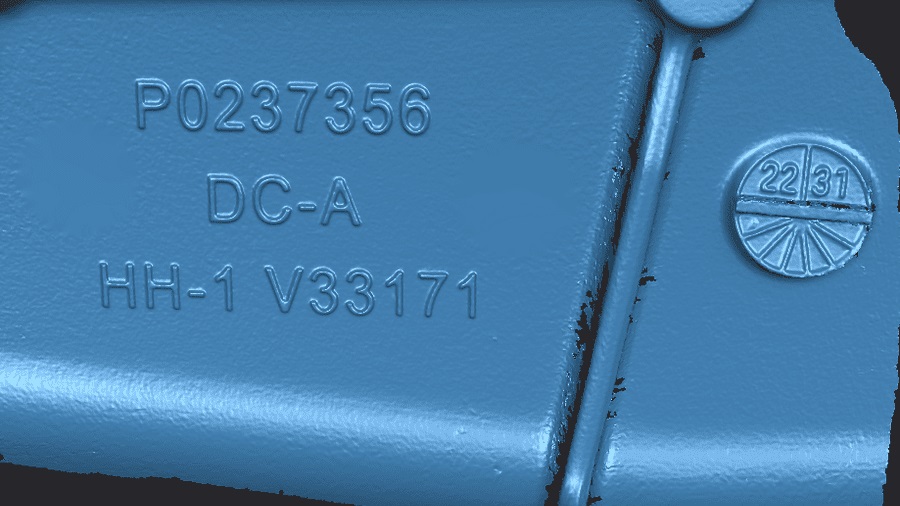

The scanning speed of the FreeScan Combo reaches 1,860,000 points per second in laser scanning mode and 2,250,000 points per second in infrared mode. The FreeScan Combo delivers a high accuracy of 0.02 mm in accordance with VDI-VDE 2634-2, while capturing a huge amount of data per second.

Multifunctional scanning modes

• 26 laser lines for the FreeScan Combo, suitable for lightweight laser scanning of large sizes.

• 7 parallel laser lines for scanning small parts.

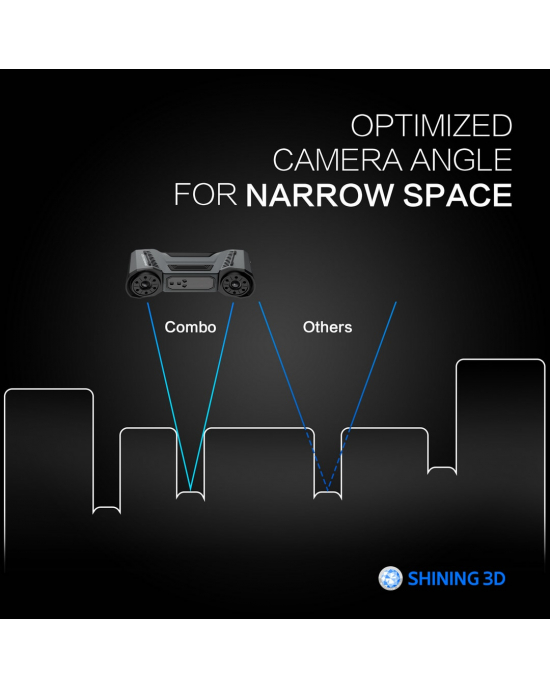

• 1 single laser line can obtain 3D data from narrow areas such as holes.
• Infrared mode can scan without markers.

Intuitive and free scanning software

FreeScan Combo provides a simple workflow, powerful and user-friendly software. The software integrates connections with the most commonly used 3D inspection and design software, allowing for more efficient import of scan data.

3D scanner FreeScan Combo application

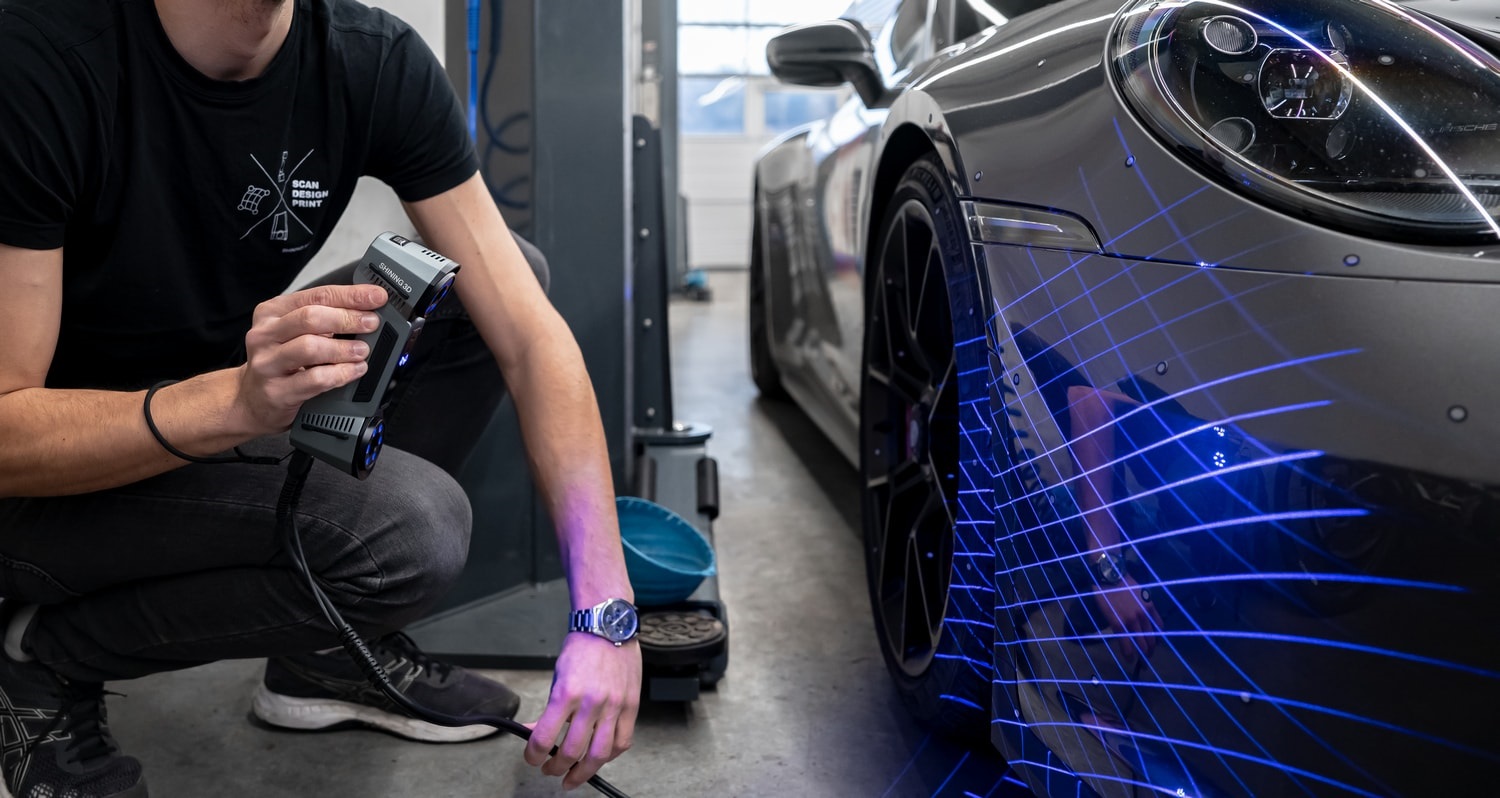

The FreeScan Combo can be used for precision metrology inspection, reverse engineering, additive manufacturing, and other applications in many manufacturing sectors, including automotive, aerospace, rail, heavy industry, mold making, foundry, and medical.

Delivery package

• 3D Scanner FreeScan Combo
• USB Drive
• Dongle
• Power Adapter
• Calibration Plate
• Certificate and Quick Start Guide
• Markers
• Power Cable
• USB Cable

Buy portable metrological 3D scanner FreeScan Combo in Ukraine
