Revopoint Trackit SR Standard Edition Optical 3D Scanning System

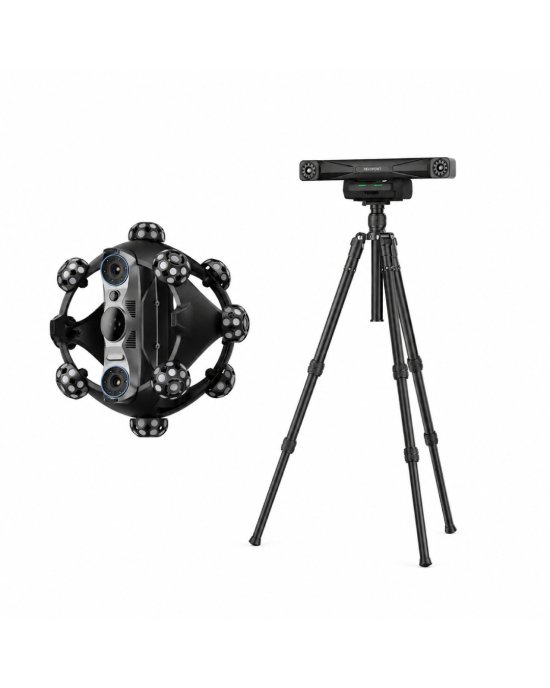

Revopoint Trackit SR Standard Edition is a professional optical 3D scanning system consisting of a handheld Scanner and a Tracker module. During operation, the Tracker determines the scanner’s position in space in real time, allowing marker-free 3D scanning directly on the object surface in Tracking Mode. Three blue laser scanning modes are designed for detailed scanning, capturing large surfaces, and digitizing recessed areas. Wi-Fi 6 support simplifies wireless operation. The Revopoint Trackit SR Standard Edition 3D scanner is suitable for digitizing parts, reverse engineering, automotive 3D scanning, creating 3D models, and working with objects of different sizes.
Main Advantages of Revopoint Trackit SR Standard Edition
- Marker-free 3D scanning. In Tracking Mode, the operator can move the Scanner around a part without applying markers directly to its surface. The Tracker determines the Scanner’s spatial position in real time.
- 0.02 mm single-frame accuracy. This parameter describes the accuracy of an individual scan frame and should not be confused with the minimum fused point distance or the volumetric accuracy of the tracking system.
- Scanning speed up to 2,000,000 points/s. High data acquisition speed helps digitize large surfaces and parts with complex geometry more quickly.
- Three blue laser scanning modes. Fine Mode uses 30 crossed laser lines, Far Mode uses 17 parallel laser lines, and Deep Hole Mode uses a single laser line.
- Wireless data transmission. Wi-Fi 6 support reduces dependence on cables and makes it easier for the operator to move around the object.
- Up to 2.5 hours of battery life. The Scanner is equipped with a removable battery that can be quickly replaced during extended scanning sessions.
- Portable system for indoor and outdoor use. The Scanner weighs 1 kg and the Tracker weighs 1.5 kg. Trackit SR is rated for operation under ambient lighting up to 100,000 lux.
Optical Tracking and Marker-Free 3D Scanning

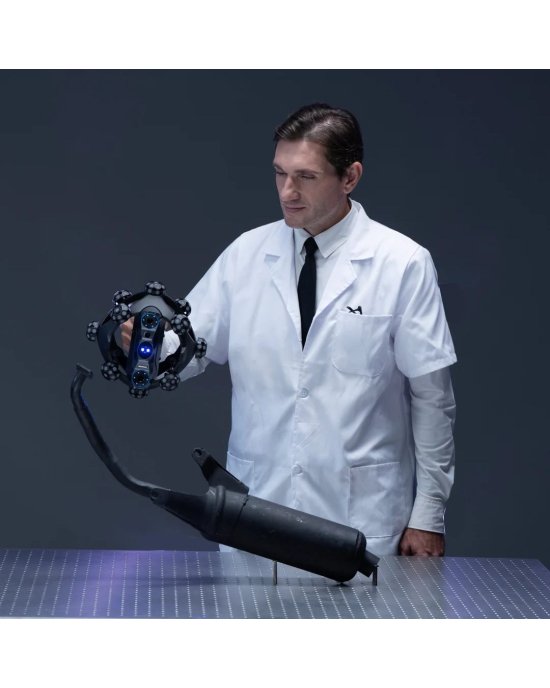

With the Revopoint Trackit SR Standard Edition, the position of the handheld Scanner in Tracking Mode is determined by the Tracker, which monitors its movement in the working space in real time. This makes it possible to scan an object without applying markers directly to its surface. This workflow is especially convenient for large parts, automotive components, complex surfaces, and objects where applying markers is undesirable.
Markers are required only in specific scanning scenarios. In Marker Scan Mode, when the Scanner is used without the Tracker, markers help correctly align captured frames. During Multi-position Scan, they can also serve as common reference points for merging data after repositioning the Tracker.
The Trackit SR Standard Edition includes 20 magnetic markers and 200 adhesive markers, allowing the scanning workflow to be adapted to the size, geometry, and characteristics of a particular object.
Three Trackit SR Laser Scanning Modes
Fine Mode with 30 Crossed Laser Lines
Fine Mode is designed for fast and detailed geometry capture. Thirty crossed blue laser lines help digitize small features, contours, and complex surfaces. In Tracking Mode, this mode is also suitable for scanning black, metallic, and reflective parts without applying markers directly to the object.
Far Mode with 17 Parallel Laser Lines
Far Mode is intended for larger parts and surfaces that are more convenient to scan from a greater distance. The working distance is 250–500 mm. Seventeen parallel blue laser lines are suitable for quickly digitizing large objects and surfaces with relatively few distinctive geometric features.
Deep Hole Mode with a Single Blue Laser Line
Deep Hole Mode is designed for scanning recessed areas, narrow zones, grooves, and deep holes. A single blue laser line helps capture geometry in areas where multi-line scanning modes may have difficulty reaching the surface. The working distance is 200–400 mm.
3D Scanning Accuracy and Speed
Revopoint Trackit SR Standard Edition provides Scanner single-frame accuracy of up to 0.02 mm. The volumetric accuracy of the optical tracking system is 0.025 mm + 0.04 mm × L (m), where L corresponds to the working distance.
The maximum scanning speed reaches 2,000,000 points/s, allowing rapid acquisition of 3D data from parts and extended surfaces. The Tracker operates at a distance of 800–2500 mm and provides a tracking volume of up to 3 m³. The Scanner working distance depends on the selected laser mode and ranges approximately from 200 to 500 mm.
Wireless Operation and Mobility
Trackit SR supports Wi-Fi 6, allowing the Scanner and Tracker to transmit data to a computer without a permanent wired connection. This is particularly convenient when scanning vehicles, large parts, and other objects that require the operator to move freely around them.
The Scanner operates from a removable battery with a stated runtime of up to 2.5 hours. The Standard Edition includes two batteries and a charger. If necessary, the Scanner can also be used independently of the Tracker in a marker-based scanning mode.
Revo Track for Scanning and 3D Model Processing
The primary software for the Revopoint Trackit SR Standard Edition is Revo Track. It is used to control scanning, calibrate the system, process captured 3D data, edit models, and export them for further use.
Supported formats include PLY, OBJ, STL, ASC, 3MF, GLTF, and FBX, allowing captured geometry to be transferred to software for 3D modeling, reverse engineering, and other manufacturing or engineering tasks.
Revo Measure, Ball Plate, and CMM accessories are not included with the Standard Edition. They are intended for the Trackit SR CMM Edition package. Therefore, the Standard Edition is primarily focused on accurate 3D scanning, digitization of physical objects, and further work with the resulting 3D models.
Applications of Revopoint Trackit SR Standard Edition
Revopoint Trackit SR Standard Edition is suitable for tasks where physical object geometry needs to be transferred quickly and accurately into a digital 3D model:
- reverse engineering of parts and assemblies;
- digitization of industrial components;
- automotive 3D scanning;
- scanning body panels and automotive components;
- creating 3D models of physical products;
- digitizing prototypes and parts with complex geometry;
- preparing scanned geometry for further use in CAD software;
- digital archiving of physical objects;
- scanning large parts and structures.
Revopoint Trackit SR Standard Edition Package Contents

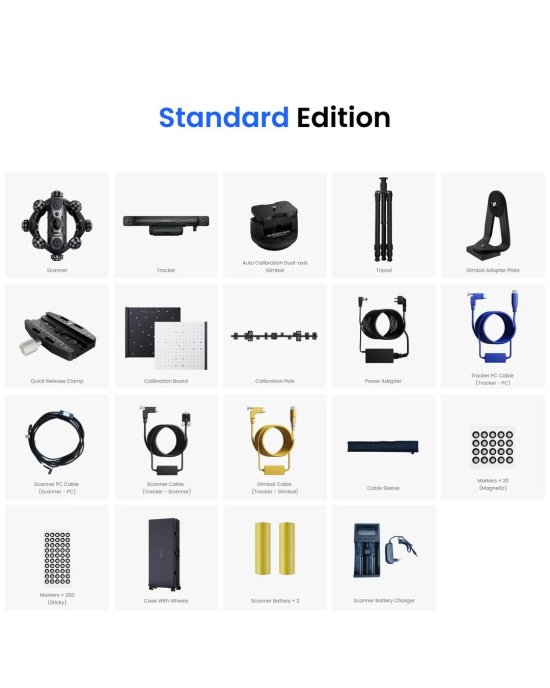

The Revopoint Trackit SR Standard Edition package includes the main components required for optical 3D scanning, system calibration, marker-free operation in Tracking Mode, and specific scanning scenarios using markers.

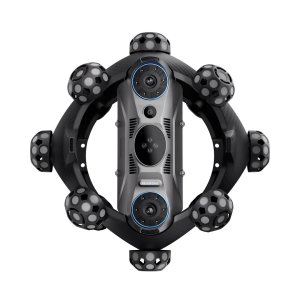

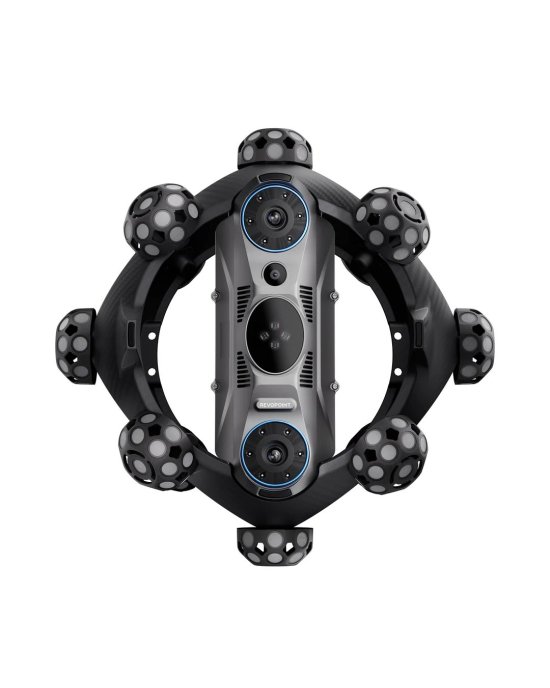

- Scanner. Handheld 3D scanner for capturing geometry using blue laser technology.

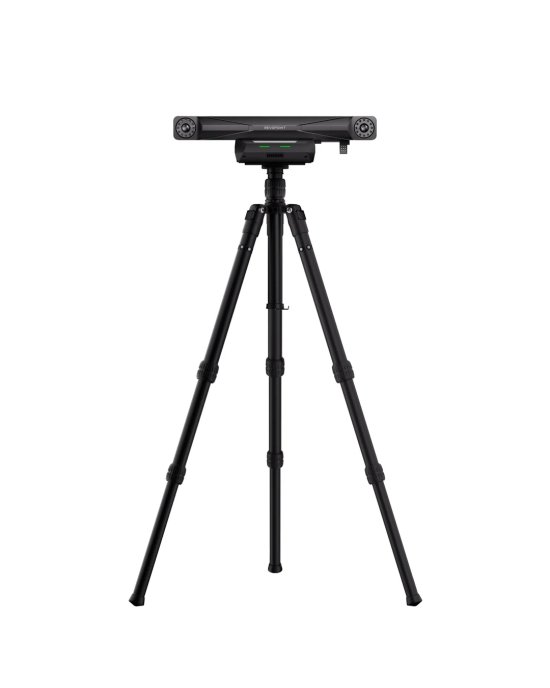

- Tracker. Optical tracking module for determining the Scanner’s position in space.
- Auto Calibration Dual-axis Gimbal. Dual-axis mechanism for automated calibration.
- Tripod. Tripod for positioning the equipment during operation.
- Gimbal Adapter Plate. Adapter plate for the calibration mechanism.
- Quick Release Clamp. Quick-release clamp for mounting components.
- Calibration Board. System calibration board.
- Calibration Pole. Calibration pole for Trackit SR setup procedures.
- Power Adapter. Power supply adapter.
- Tracker PC Cable. Cable for connecting the Tracker to a computer.
- Scanner PC Cable. Cable for connecting the Scanner to a computer.
- Scanner Cable. Cable for connecting the Scanner and Tracker.
- Gimbal Cable. Cable for connecting the Tracker to the dual-axis calibration mechanism.
- Cable Sleeve. Protective sleeve for organizing cables.
- 20 Magnetic Markers. Used for corresponding marker-based scanning workflows.
- 200 Adhesive Markers. Intended for Marker Scan Mode and other scenarios requiring reference points.
- Case With Wheels. Wheeled case for storing and transporting the system.
- Scanner Battery × 2. Two removable batteries for the Scanner.
- Scanner Battery Charger. Charger for the Scanner batteries.
Revopoint Trackit SR Standard Edition Technical Specifications
Trackit SR 3D Scanner
| Parameter | Value |
| Single-frame accuracy | 0.02 mm |
| Minimum fused point distance | up to 0.05 mm |
| Scanning speed | up to 2,000,000 points/s |
| Acceptance test standard | VDI/VDE 2634 Part 3; ISO 10360-13 |
| Capture area at minimum distance | 123 × 130 mm at 200 mm |
| Capture area at maximum distance | 330 × 325 mm at 500 mm |
| Wi-Fi | Wi-Fi 6 |
| Operating temperature | 0–30 °C |
| Export formats | PLY, OBJ, STL, ASC, 3MF, GLTF, FBX |
| Recommended object size | 0.01–4 m |
| Dimensions | 250 × 250 × 177 mm |
| Weight | 1.0 kg |
Tracker
| Parameter | Value |
| Working distance | 800–2500 mm |
| Volumetric tracking accuracy | 0.025 mm + 0.04 mm × L (m) |
| Minimum tracking area | 587 × 569 mm at 800 mm |
| Maximum tracking area | 2075 × 1778 mm at 2500 mm |
| Tracking volume | 3 m³ |
| Wi-Fi | Wi-Fi 6 |
| Tracking spectrum | NIR, near-infrared range |
| User recalibration | Manual calibration |
| Supported accessories | Calibration panel, calibration pole, anchor block, battery grip |
| Dimensions | 441 × 111 × 103 mm |
| Weight | 1.5 kg |
Getting Started with Revopoint Trackit SR
Before starting 3D scanning, select the appropriate workflow, correctly position the Scanner and Tracker, and determine whether markers are required for the specific object. The main calibration, setup, and scanning operations are performed through Revo Track. The video demonstrates the basic steps for preparing the Revopoint Trackit SR for operation.
Practical Tips for Working with Trackit SR
- Monitor the Tracker position. In Tracking Mode, the Scanner must remain within the tracking area and the permitted working distance of 800–2500 mm.
- Prepare markers for Marker Scan Mode. When using the Scanner independently without the Tracker, markers are required for stable frame alignment.
- Use common reference points when repositioning the Tracker. In Multi-position Scan, markers can serve as global coordinates for correctly merging scan data.
- Monitor the Scanner battery level. One battery provides up to 2.5 hours of operation, and the Standard Edition includes two batteries and a charger.
Order Revopoint Trackit SR Standard Edition
Order the Revopoint Trackit SR Standard Edition if you need a professional 3D scanning system for digitizing parts, reverse engineering, automotive projects, and creating accurate 3D models. We will help you choose the optimal configuration, advise you on the capabilities of the Revopoint Trackit SR Standard Edition 3D scanner, and provide information about delivery terms in Ukraine.
