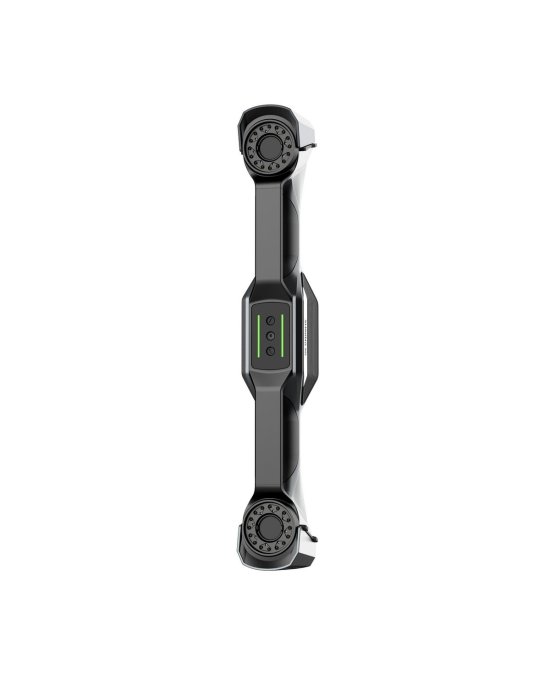

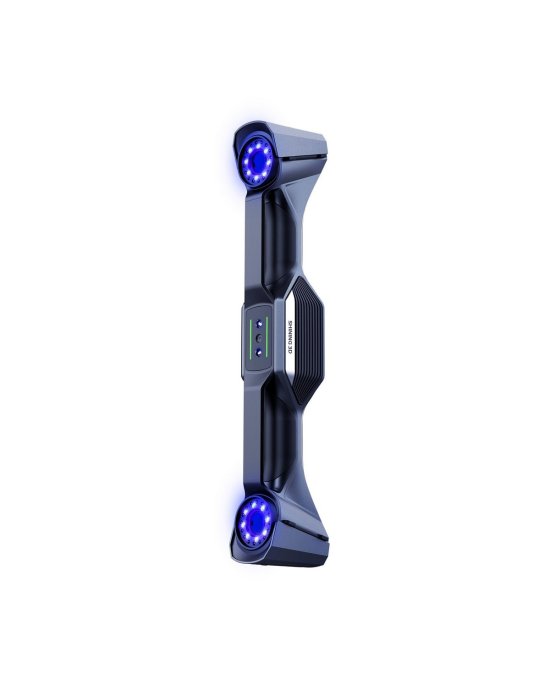

FreeScan UE Nova – metrological 3D scanner for large-scale tasks
FreeScan UE Nova – metrological 3D scanner of a handheld type for realization of large-scale projects. Professional wireless 3D scanner offers new standards of accuracy and efficiency. Thanks to a wide area of coverage and a thoughtful design, the device is ideal for working with large objects. Portability, wide possibilities of application and productivity made it the ideal solution for various fields of application.
Features of the SHINING metrological 3D scanner:
- Capture area 2.6x2.2 m.
- High scanning speed.
- Integrated video photogrammetry (VPG).
- Wireless design.
- 50 laser lines.
- 3 scanning modes.
- Built-in computing modules.
- Replaceable batteries.
- Integrated wireless modules.
Large-scale 3D scanning

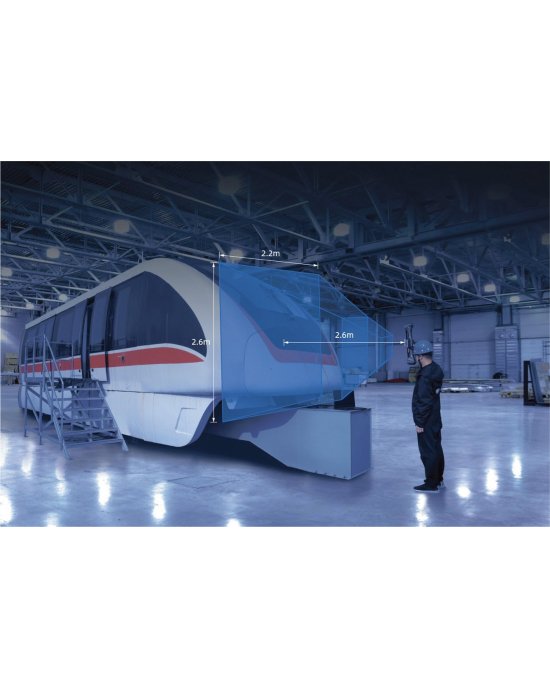

FreeScan UE Nova provides scanning with a field of view of 2.6 × 2.2 m and a maximum distance of up to 2.6 m. This makes the device an ideal choice for large-scale projects that require fast and accurate data collection.
FreeScan UE Nova High Speed
The scanner is equipped with 50 laser lines that allow data collection at high speed. This significantly reduces scanning time, ensuring productivity even when working with large and complex objects.
Integrated Video Photogrammetry (VPG)

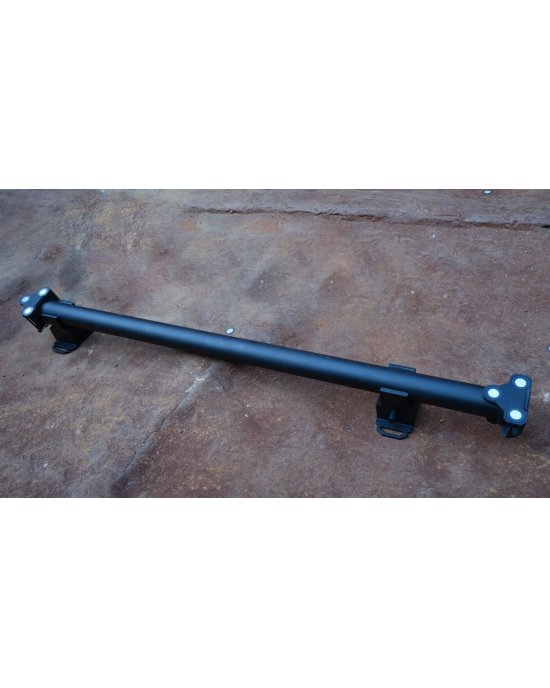

FreeScan UE Nova uses SHINING 3D's patented Video Photogrammetry (VPG) technology. The system eliminates the need for coded markers by integrating photogrammetry with a calibration rod. This allows for real-time marker verification and maintains volumetric accuracy at 0.072 + 0.012 mm/m, which simplifies setup and speeds up the workflow.
Flexible operating modes
FreeScan UE Nova offers three modes that adapt to different operating conditions:
- Close mode (300-800 mm): suitable for scanning small parts in limited space.
- Standard mode (600-1500 mm): Universal option for general purpose.
- Long mode (1200-2600 mm): Optimal for working with large objects, allowing you to cover large areas.
Convenience and mobility
FreeScan UE Nova is designed for mobile work in any conditions:
- Wireless modules provide real-time data transmission, eliminating the need for cables.

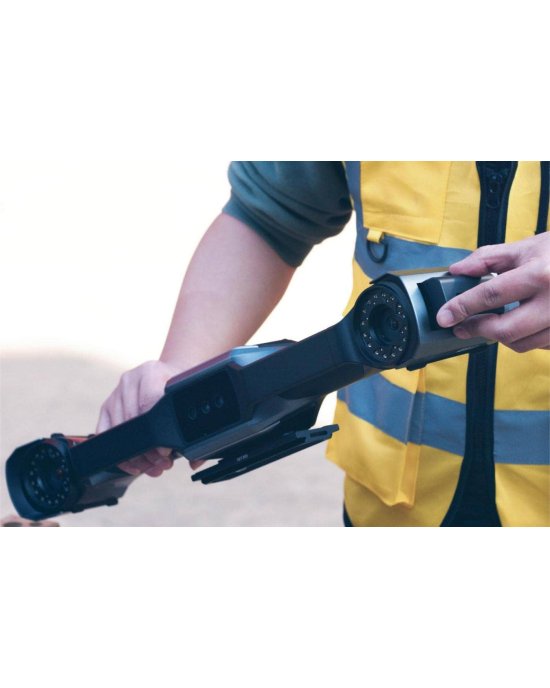

- Replaceable batteries with hot-swappable function allow continuous operation, even in long projects or remote locations.
- Built-in computing modules ensure fast data processing and stable operation.
FreeScan Trak Software
Intelligent software features simplify operation:
- Automatic resolution adjustment: The system adjusts the grid resolution depending on the curvature of the object.

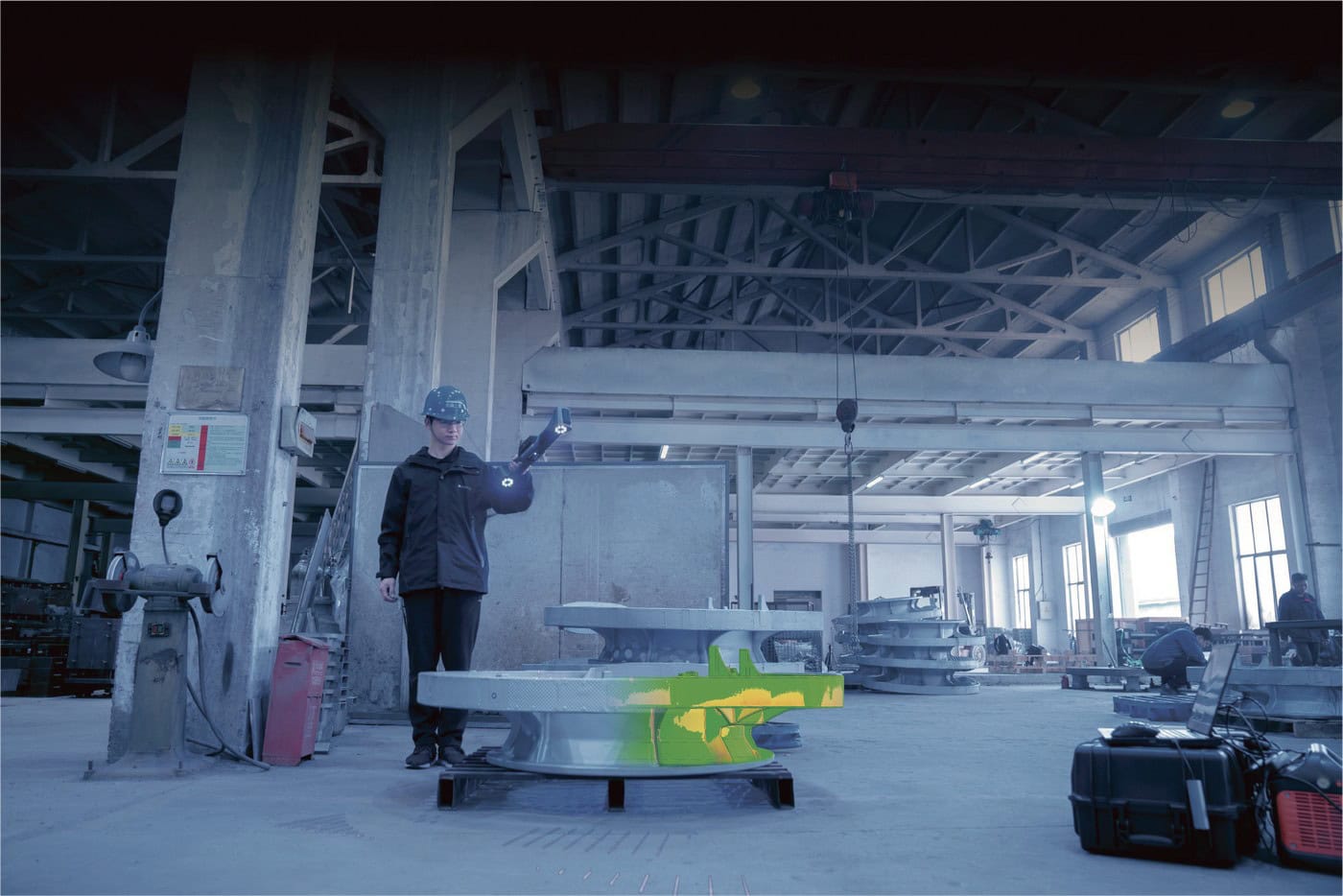

- Inspection module: Certified by PTB, ensures high-quality full-size inspection.
- Data quality indicator: Users can monitor the quality of scanned data in real time and check its completeness.
Adaptability to various materials
FreeScan UE Nova copes with scanning tasks on materials of varying complexity, including standard, black and reflective surfaces.

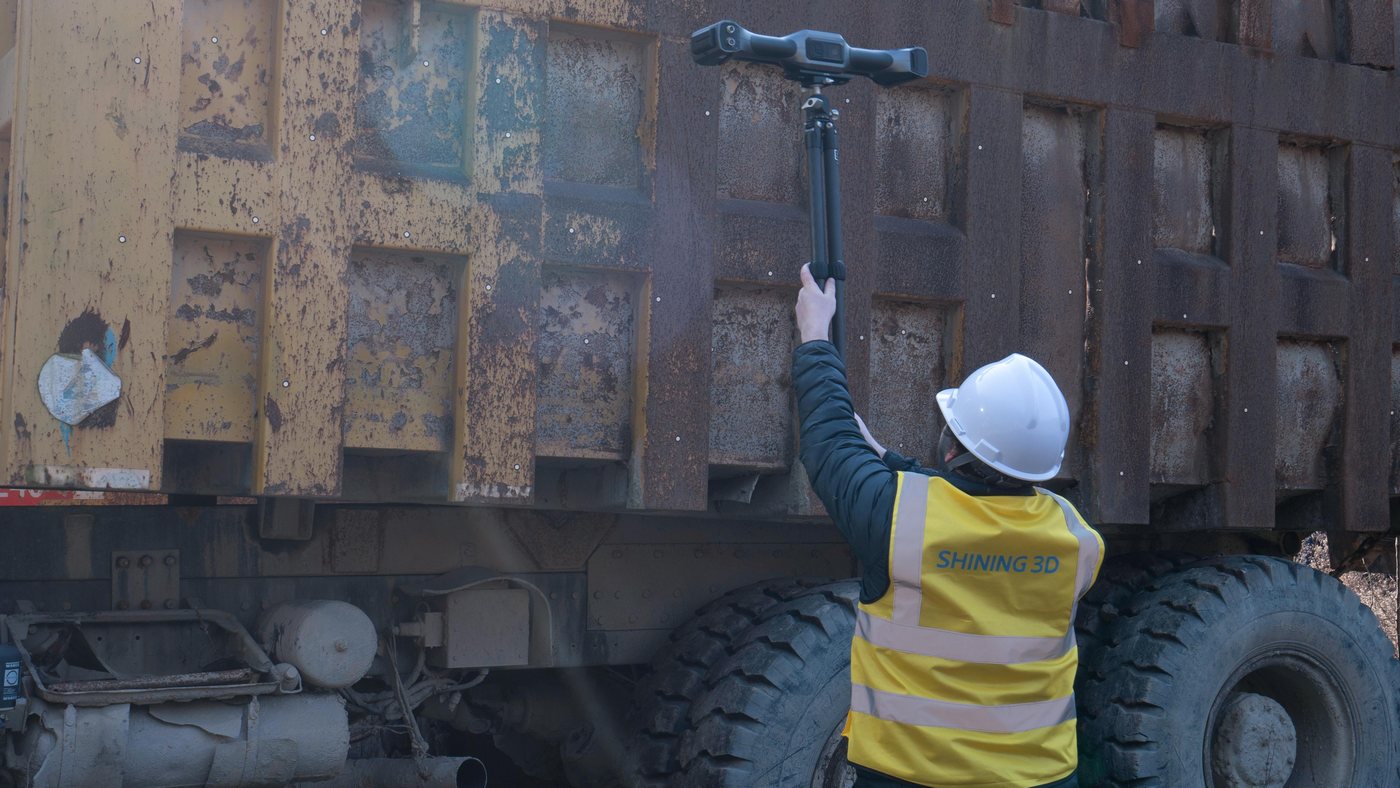

Applications of the FreeScan UE Nova metrological 3D scanner
FreeScan UE Nova is actively used in industries such as:
- Engineering and transportation: Measurement of large parts and quality control.

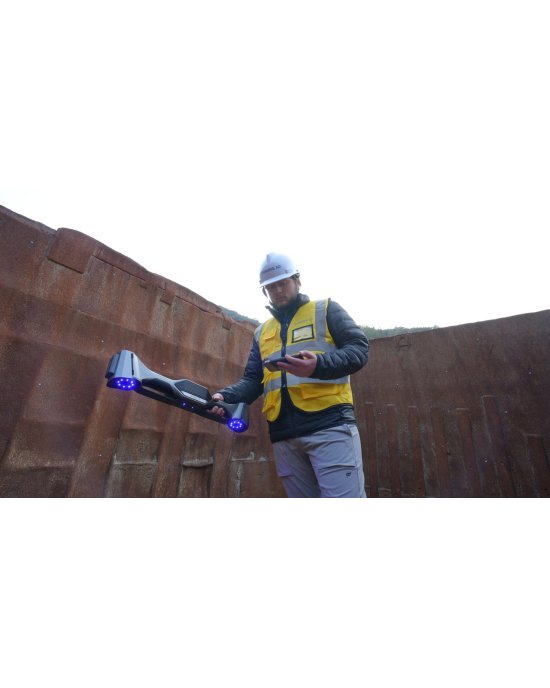

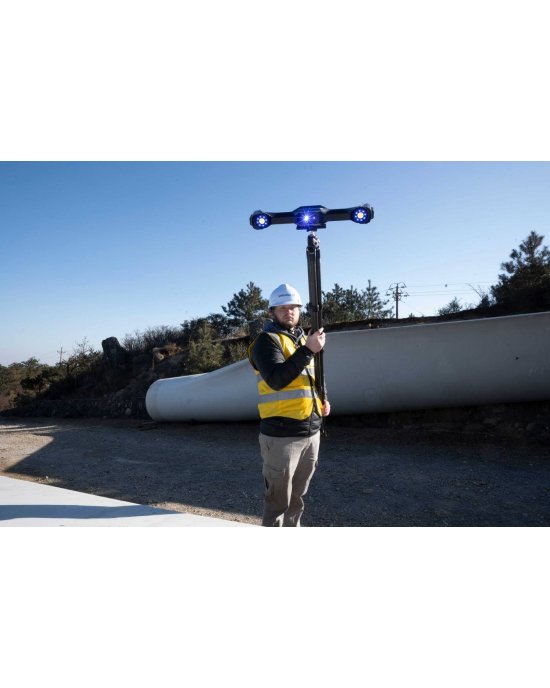

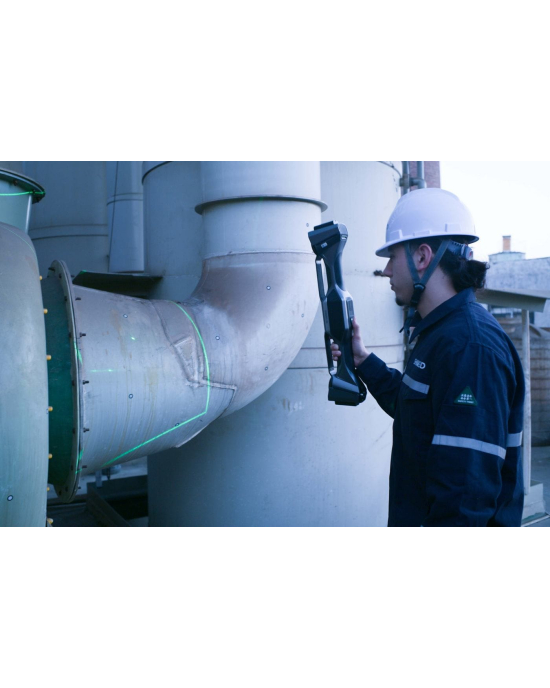

- Energy and heavy industry: Scanning and inspection of infrastructure.
- Municipalities: Work with urban and engineering service facilities.
- Motor transport: Analysis of parts, modification and reverse engineering.
FreeScan UE Nova is an advanced solution for large-scale 3D scanning. The device combines mobility, high accuracy and versatility, providing professionals with all the necessary tools for working in a variety of environments.
