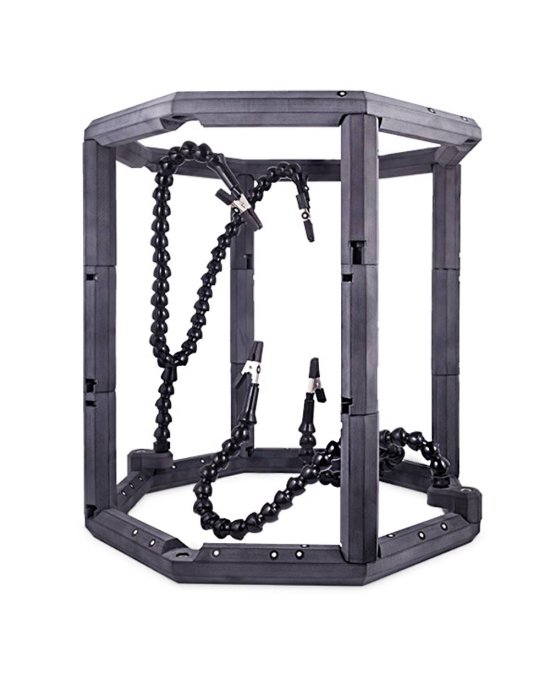

AESUB Frame – Frame for Precise Positioning of Medium-Sized Parts
The AESUBframe 300 mm is designed for precise and stable scanning of medium-sized objects (up to 250 mm in diameter), especially when working with series or complex shapes. Its modular assembly, lightness, and rigidity make it an ideal tool for fast and reliable digital detailing.
Technical Specifications of the AESUB Frame for Medium-Sized Parts
- Frame Diameter: 300 mm — optimal for medium-sized parts up to 250 mm in diameter and up to 250 mm in height.
- Material: additively manufactured material with carbon fiber reinforcement — provides both high strength and minimal weight.

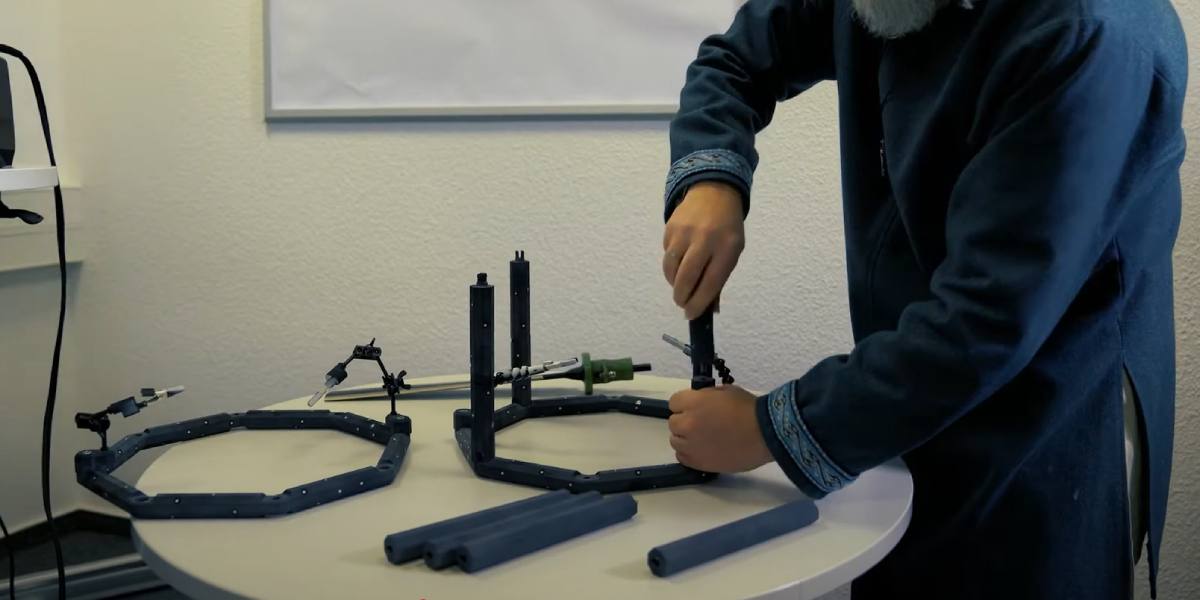

- Construction: modular, with integrated plug-in and screw connections — assembly without additional tools.
- Body: made in black color directly from the material — no painting, wear-resistant, and minimizes glare.
- Compatibility: fully supports working with AESUBdots markers, improving positioning accuracy in the scan.
AESUB Frame Kit Contents: What's in the Box
- 2 frames with a diameter of 300 mm
- 8 screw extension rods (100 mm)
- 4 plug-in rods with clamps (100 mm)
- 2 metal levers with "crocodile" holders
- 2 supports for these levers
- 4 "crocodile" clamps
- 1 hex key (Allen key)
- a hard case for storing and transporting all components
Features of the AESUB Frame's Design and Material
- Material: carbon reinforcement guarantees strength with low weight, which is important for frequent repositioning or mobile work.
- Construction: Modularity allows the frame to be adapted for various tasks, easily changing sizes or height.
- Tool-free preparation for work: plug-in and screw connections are integrated into the design, which shortens assembly time.
- Black matte body: reduces reflections, requires no painting, and is ready for use right away.
- Rigidity: minimizes vibrations and ensures the stability of the object's position, especially in serial scanning conditions.
How Using AESUB Frames Improves Scanning

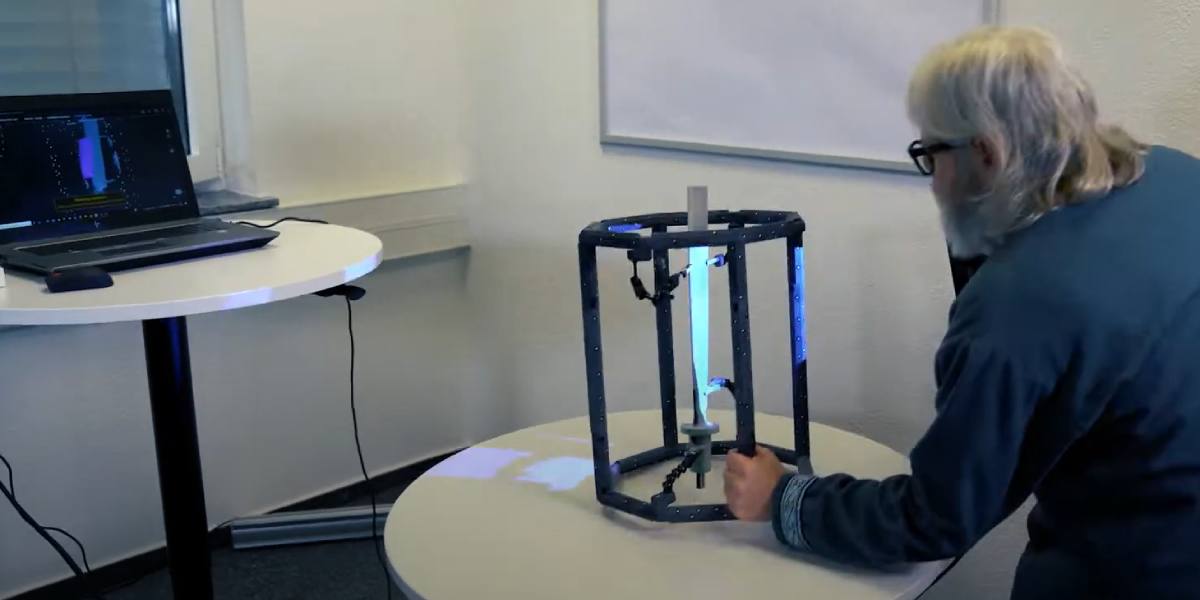

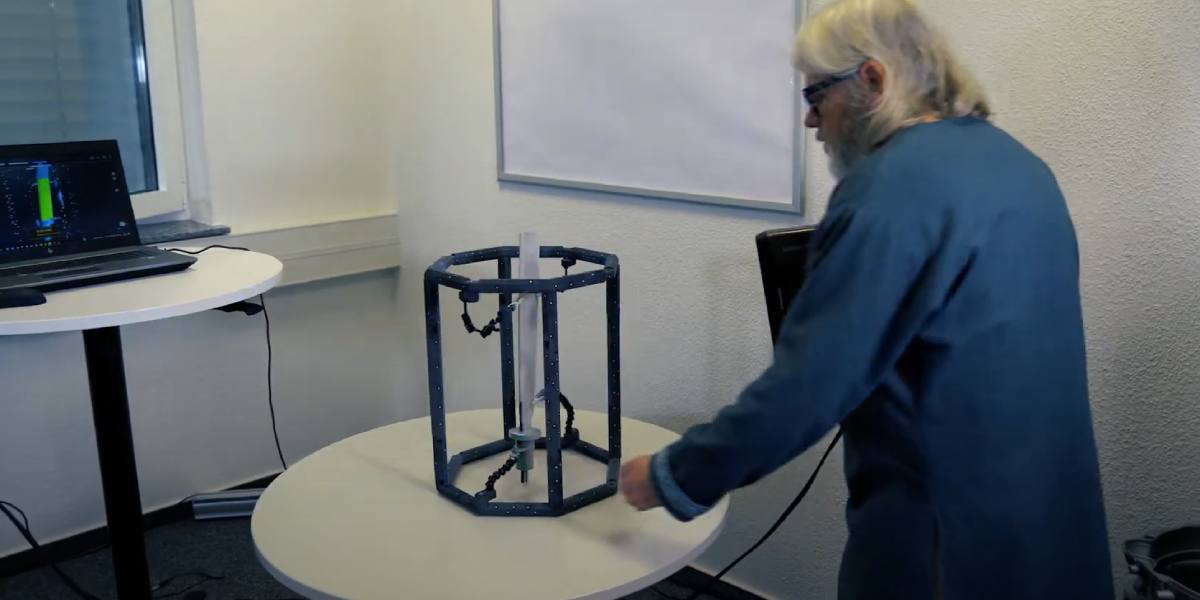

The frame simplifies position setup and allows you to start scanning faster, especially when working with series. This speeds up the workflow.
AESUBdots markers are easily placed not on the object but on the frame, which speeds up registration and improves accuracy, significantly increasing precision.

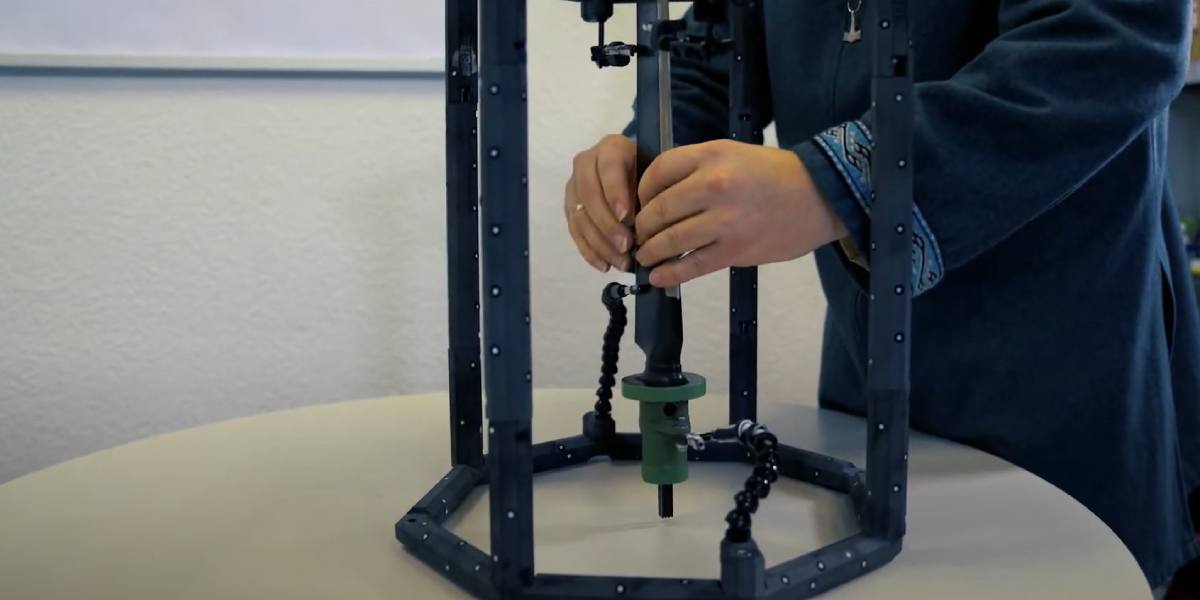

Consistent fixation of each object reduces errors and variations between scans, which is very important in serial production.
Objects with glossy or transparent surfaces can be scanned without a coating — markers on the frame ensure accuracy. This simplifies scanning.
The case reliably protects all parts; the frame is easily transported and ready for fieldwork, which simplifies storage and transport.
Possible Areas of Application for Carbon Positioning Frames
- Production: quality control and inspection in manufacturing.
- Design: reverse engineering and 3D model creation.
- Archaeology, cultural heritage preservation: archiving of objects.
- Consistency in serial work: precise preservation of digital copies of objects.
The AESUBframe 300 mm is an expert, ready-to-use solution for 3D scanning of medium-sized objects. Thanks to carbon reinforcement, modular design, lightness, and rigidity, as well as a complete set of accessories in a compact case, it provides maximum precision, mobility, and efficiency for professional tasks of any complexity. You can buy 3D scanning accessories at a discount on our website or by phone. Call us — we will consult you, tell you about the products, show you, and teach you how to use them!
