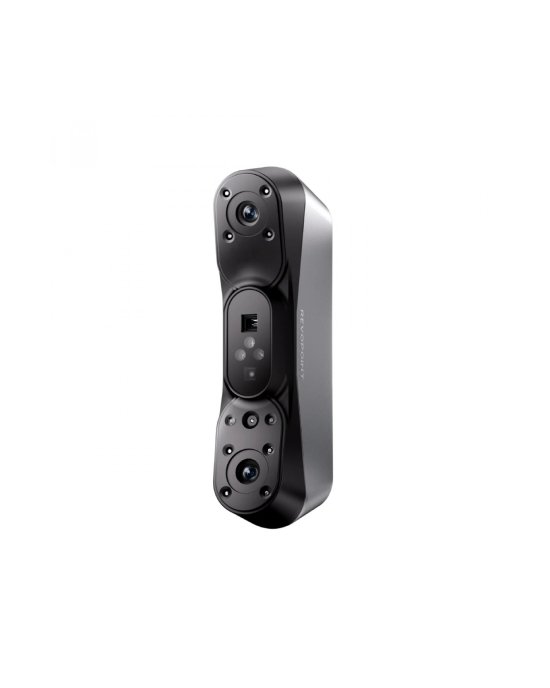

Revopoint POP 4 Standard Edition — AI-Powered Hybrid 3D Scanner for Professional Digitization
Revopoint POP 4 Standard Edition is a hybrid handheld and desktop 3D scanner engineered for precise digitization of small and medium-sized objects. By combining blue multi-line laser technology, infrared structured light, and VCSEL projection in a single device, POP 4 provides five specialized scanning modes optimized for reverse engineering, quality control, digital archiving, and 3D content creation. Integrated AI-assisted processing and support for photorealistic 3D Gaussian Splatting workflows expand the scanner beyond traditional mesh generation.
Key Specifications
| Specification | Value | Why it matters |
|---|---|---|
| Single-frame Accuracy | Up to 0.03 mm | Captures fine geometric details suitable for reverse engineering and dimensional inspection workflows. |
| Scanning Modes | 5 specialized modes | Allows optimization for different materials, object sizes, and scanning environments. |
| Scanning Speed | Up to 105 fps | Reduces acquisition time while maintaining high data density. |
| Volumetric Accuracy | 0.03 mm + 0.05 mm × L (m) | Provides predictable measurement accuracy across large scanning projects. |
The hybrid optical architecture of POP 4 eliminates the need to choose between speed and precision. Multiple acquisition technologies work together to capture difficult geometries, deep cavities, organic surfaces, and large objects while reducing preparation time and post-processing effort.
Built-in AI object segmentation automatically removes backgrounds and operator interference during scanning, reducing manual mesh cleanup and accelerating model preparation.
Support for photorealistic 3D Gaussian Splatting enables the creation of highly realistic digital assets with accurate geometry, color information, and lighting characteristics captured directly from the scanned object.
Scanning Technology and Operating Modes
Revopoint POP 4 integrates three optical technologies that can be selected depending on object geometry, material properties, and scanning requirements.
Multi-line Blue Laser Scanning
The scanner projects 30 blue cross laser lines to rapidly capture dark, matte, and low-reflective surfaces. This mode minimizes the need for scanning sprays while maintaining high measurement accuracy for engineering applications.
Single-line Laser Scanning
Single-line mode concentrates scanning power into a narrow laser stripe, allowing precise digitization of grooves, channels, internal cavities, and other difficult-to-access geometries that cannot be captured efficiently using multi-line scanning.
Infrared Full-Field HD Scanning
The infrared structured light projector captures highly detailed surface geometry without requiring markers. This mode is optimized for textured objects requiring maximum geometric fidelity.
VCSEL Rapid Scanning
VCSEL structured light technology enables fast markerless scanning of larger objects and human subjects while maintaining stable tracking performance under controlled lighting conditions.
Hybrid HD Mode
Hybrid mode combines infrared structured light and VCSEL projection technologies to maximize both acquisition speed and geometric precision during complex scanning projects.
Hardware Design and Optical Architecture

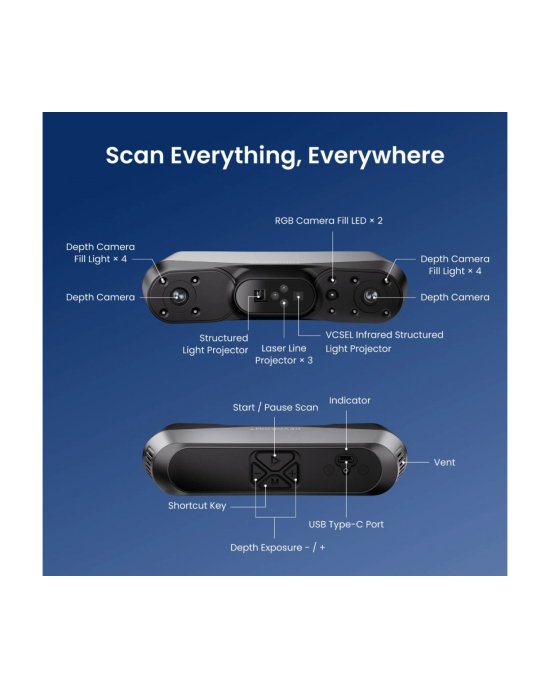

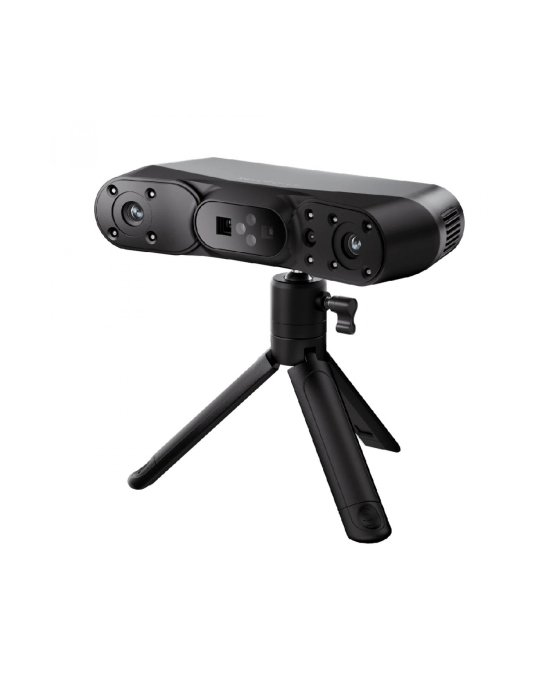

POP 4 operates both as a handheld scanner and as a desktop digitization system. Its compact housing integrates multiple projection systems, stereo cameras, and a dedicated RGB camera while maintaining a total weight of only 286 g.
The optical system automatically adapts to different scanning distances, allowing capture of objects ranging from small mechanical components to objects measuring up to 2 × 2 × 2 meters.
Wireless operation via Wi-Fi 6 and Bluetooth connectivity provides flexible deployment options for mobile scanning applications.
AI Processing and Software Ecosystem
The Revopoint software ecosystem incorporates artificial intelligence algorithms to simplify data acquisition and processing workflows.
- Real-time AI object segmentation.
- Automatic background removal.
- Automatic object tracking.
- Marker-based and markerless alignment.
- Photorealistic 3D Gaussian Splatting export.
- Direct generation of 3D-printable models.

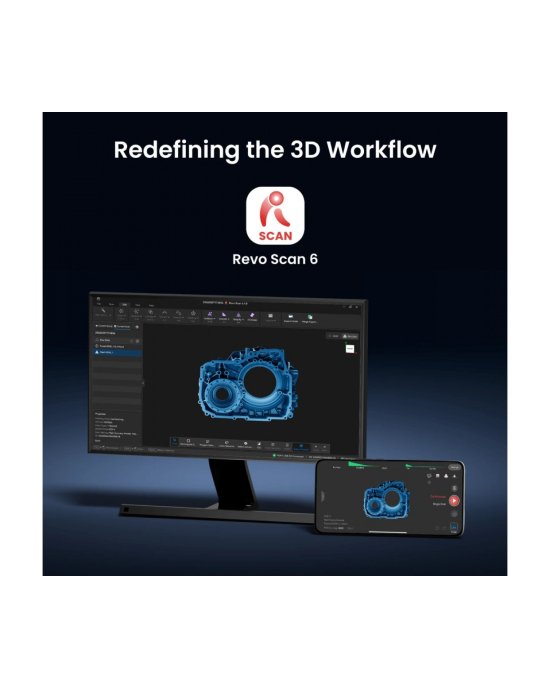

POP 4 integrates with Revo Scan, Revo Measure, and Revo Design software solutions, providing a unified workflow from scanning to inspection and CAD preparation.
Color Capture and Digital Asset Creation
An integrated 1.3 MP RGB camera captures texture and color information during scanning. The software automatically aligns color maps with the generated geometry, enabling the creation of textured digital twins, museum archives, artistic reproductions, and photorealistic virtual assets.
Application Areas
- Reverse Engineering: Capture mechanical components and assemblies for CAD reconstruction and redesign workflows.
- Industrial Inspection: Generate accurate digital models for dimensional verification and quality control procedures.
- Product Development: Accelerate prototyping cycles by converting physical objects into editable digital models.
- Cultural Heritage Preservation: Digitize sculptures, artifacts, and historical objects while preserving geometric and visual details.
- Medical and Prosthetic Applications: Capture anatomical geometry for custom orthotics, prosthetics, and educational models.
- Creative Industries: Produce digital assets for gaming, animation, AR/VR applications, and digital content creation.
- Education and Research: Support engineering, manufacturing, and scientific research projects requiring high-accuracy digitization.
Compatibility
- Operating Systems: Windows 10/11 (64-bit), macOS 11+, Android, iOS.
- Output Formats: PLY, OBJ, STL, ASC, 3MF, GLTF, FBX, Splat.
- Connection Interfaces: USB Type-C, Wi-Fi 6, Bluetooth 4.1.
- Software Ecosystem: Revo Scan, Revo Measure, Revo Design.

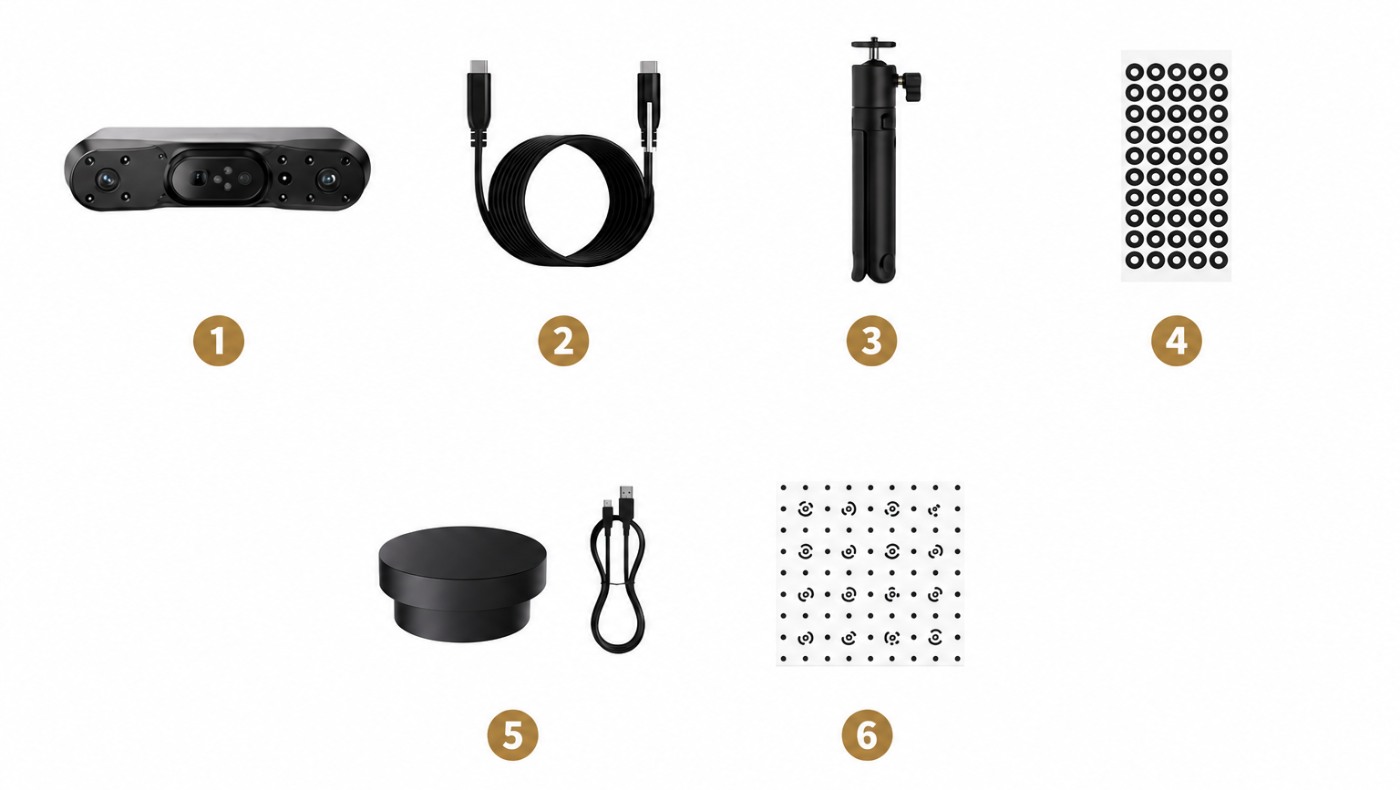

What's Included
- Revopoint POP 4 3D Scanner ×1
- USB Type-C to Type-C Cable (2 m) ×1
- Tripod ×1
- Calibration Board ×1
- Mini Turntable ×1
- Markers ×200
Technical Specifications
Scanning Parameters
| Scanner Type | Handheld and Desktop |
| Scannable Object Size | Small to Medium Objects |
| Minimum Scan Volume | 10 × 10 × 10 mm |
| Maximum Scan Volume | 2 × 2 × 2 m |
Accuracy and Resolution
| Laser Accuracy | Up to 0.03 mm |
| Infrared Accuracy | Up to 0.08 mm |
| VCSEL Accuracy | 0.10–0.20 mm |
| Volumetric Accuracy | 0.03 mm + 0.05 mm × L (m) |
| Fused Point Distance | Up to 0.05 mm |
Optical System
| Blue Laser | 30 Cross-lines / 1 Line |
| Infrared Projection | Full-field Structured Light |
| VCSEL Projection | Structured Light |
| RGB Camera | 1.3 MP |
Working Distance
| Laser Mode | 200–400 mm |
| Infrared HD Mode | 250–500 mm |
| VCSEL Mode | 300–800 mm |
Connectivity
| Wireless | Wi-Fi 6, Bluetooth 4.1 |
| Wired | USB 3.0 Type-C |
| Export Formats | PLY, OBJ, STL, ASC, 3MF, GLTF, FBX, Splat |
Physical Characteristics
| Dimensions | 160 × 30 × 72 mm |
| Weight | 286 g |
| Power Supply | 5 V / 2 A via USB |
