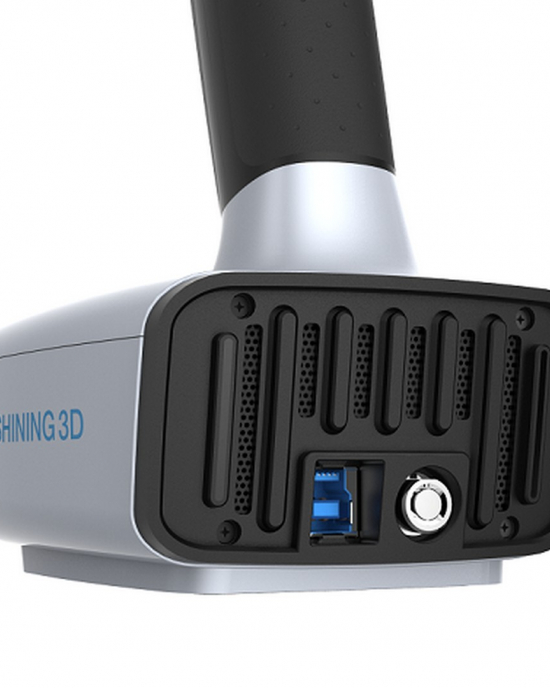

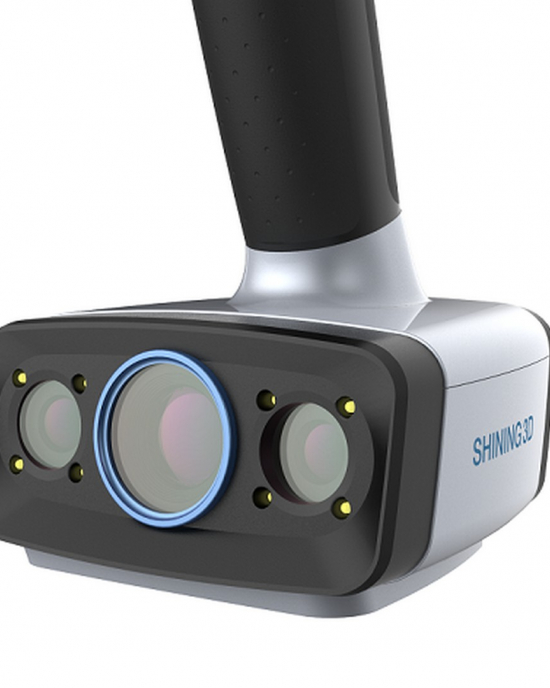

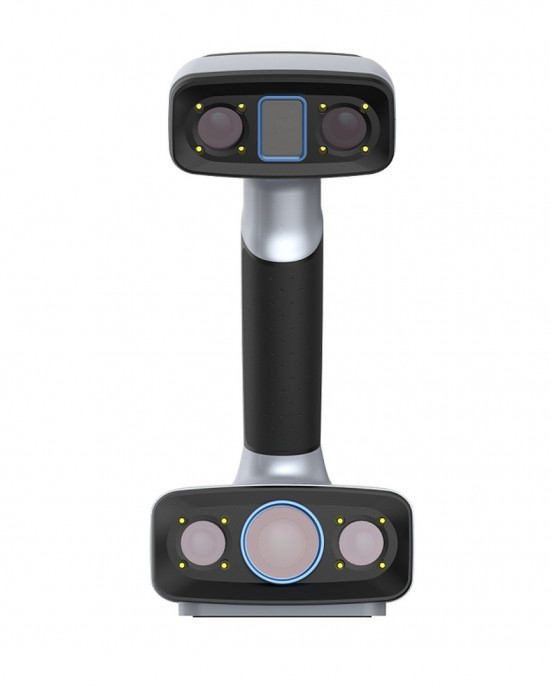

3D scanner SHINING 3D EinScan HX buy
3D scanner SHINING 3D EinScan HX is a new handheld color 3D scanner with hybrid blue LED and blue laser light source.
Areas of use:

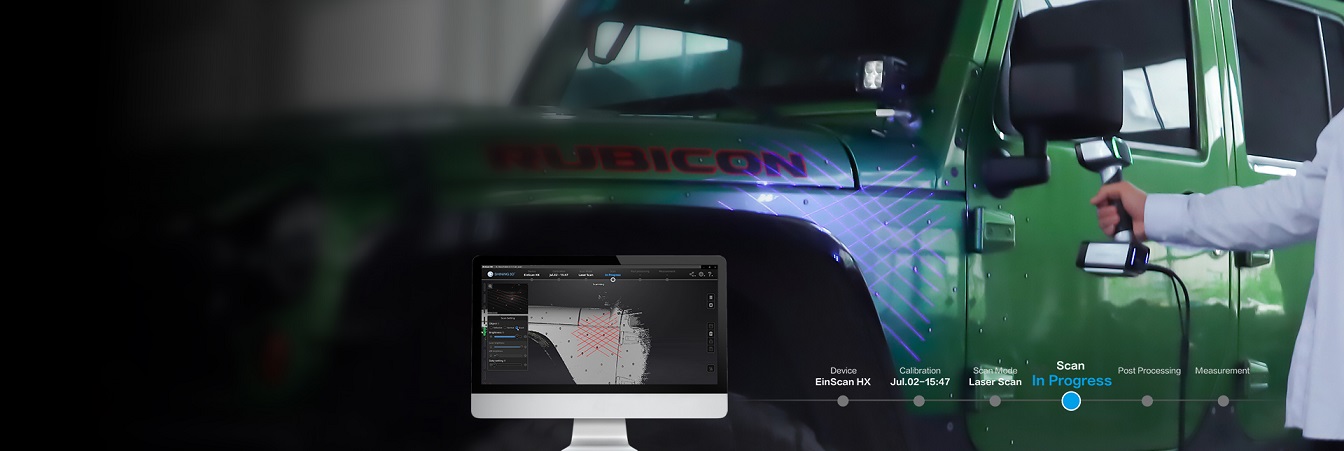

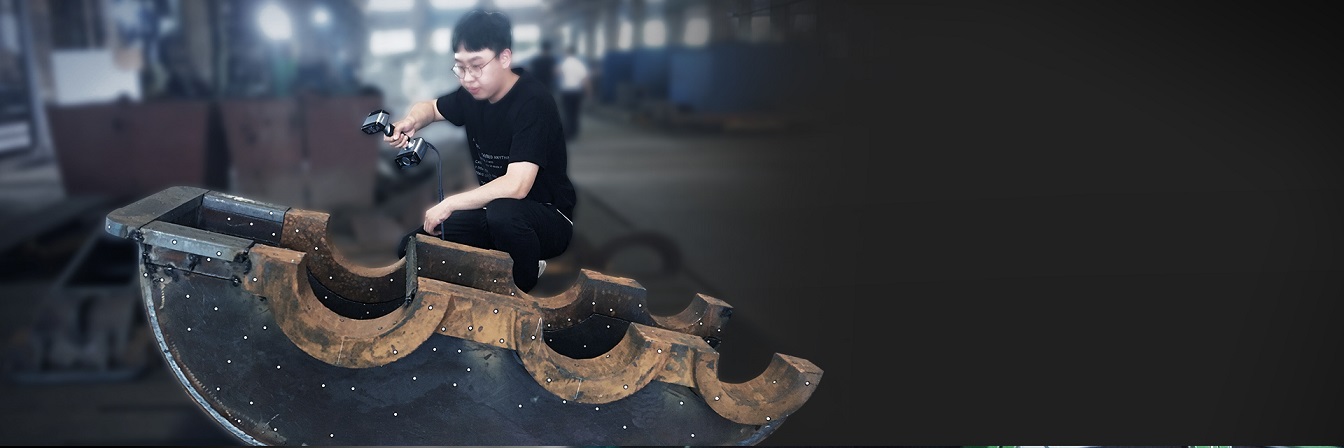

- Automotive industry, shipbuilding, mechanical engineering
- Education and research
The new EinScan HX 3D scanner is Shining3D's fastest and most accurate digital copy of an object.
Metrological 3D scanners Shining 3D advantages:
- Stability and precision. Compared with almost all brands from China, the data repeatability and accuracy of Shining 3D metrology scanners are the most stable.
- High scanning speed. With a software update, they are the fastest 3D scanners in the Shining 3D line of scanners.
- Powerful software with an intuitive interface for different types of objects (for example, black or mirrored). Shining 3D has adjusted the parameters in such a way that even an inexperienced operator can scan with these scanners - just by pressing one button in the program.
- Lightweight and portable 3D scanner. Long-term scanning of large volumes will not be inconvenient for the operator due to the well-thought-out design of the device.
Features of 3D scanner SHINING 3D EinScan HX
The manufacturer has expanded the range of objects available for scanning by combining a blue LED backlight and a blue laser in one device. Thus, this portable 3D scanner is able to adapt to the surface features. It has access to both fast scanning using the projection of a grid of LED lines, as well as less sensitive to ambient light reading of the surface with a laser. Due to this, the scanner will be able to scan even mirrored and dark surfaces. As you can see, the possibilities of this scanner for the scanned materials are truly endless.
High efficiency
The processing speed of the EinScan HX in fast scan mode is up to 1,200,000 dots/s, and several blue laser lines in laser scan mode can scan most objects in minutes for reverse engineering, CAD/CAM, 3D printing, etc.
Reliable results
High resolution and accuracy meets the requirements of most industrial reverse engineering and W&M applications.
The minimum distance between points is 0.05 mm, accuracy up to 0.04 mm in laser mode.
Portability and ease of use
The EinScan HX is as easy to use as "plug and scan" with user-friendly software that is easy to operate. Both a beginner and an experienced user of technology can handle this. In addition, this scanner is ergonomic and lightweight enough to enable more efficient and convenient scanning.
Full color
In addition, with a built-in color camera, this 3D scanner supports full color object capture and texture tracking.
Specifications
| Rapid Scan | Laser Scan | |
| Scan Accuracy | Up to 0,05 mm | Up to 0,04 mm |
| Volumetric Accuracy* | 0,05 + 0,1 mm/m | 0,04 + 0,06 mm/m |
| Scan Speed | 1,200,000 points/s 20FPS | 480,000 points/s 55FPS |
| Camera Frame Rate | 55FPS | 55FPS |
| Align Mode | Feature Alignment, Markers Alignment, Texture Alignment, Hybrid Alignment | Markers Alignment |
| Working Distance | 470 mm | 470 mm |
| Depth of Field | 200 mm - 700 mm | 350 mm - 610 mm |
| Max FOV | 420 mm × 440 mm | 380 mm × 400 mm |
| Point Distance | 0,25 mm - 3 mm | 0,05 mm - 3 mm |
| Light Source | Blue LED | 7 Blue Laser Crosses |
| Safety | Eye-safe | Class I (Eye-safe) |
| Built-in Color Camera | Yes | |
| Texture Scan | Yes | No |
| Connection Standard | USB 3.0 | |
| Output Formats | OBJ, STL, ASC, PL, P3, 3MF | |
| Dimensions | 108 × 110 × 237 mm | |
| Weight | 710 g | |
| Operating Temperature Range | 0 - 40 °C | |
| Operating Humidity Range | 10 - 90 % | |
| Certifications | CE, FCC, ROHS, WEEE, KC | |
| Recommended Configuration | OS: Win10, 64 bit; Graphics card: NVIDIA GTX/RTX series cards, higher or equal to GTX 1080; Video memory: ≥ 4Gb; Processor: I7-8700; Memory: ≥ 32 Gb | |
*Volumetric accuracy refers to the relationship between 3D data accuracy and object size; the accuracy is reduced by 0.1mm（rapid scan)/0.06mm(laser scan) per 100cm.The conclusion is obtained by measuring the center of sphere under marker alignment.
