FreeScan Trak Nova+ for Detailed 3D Scanning and Wide-Area Coverage

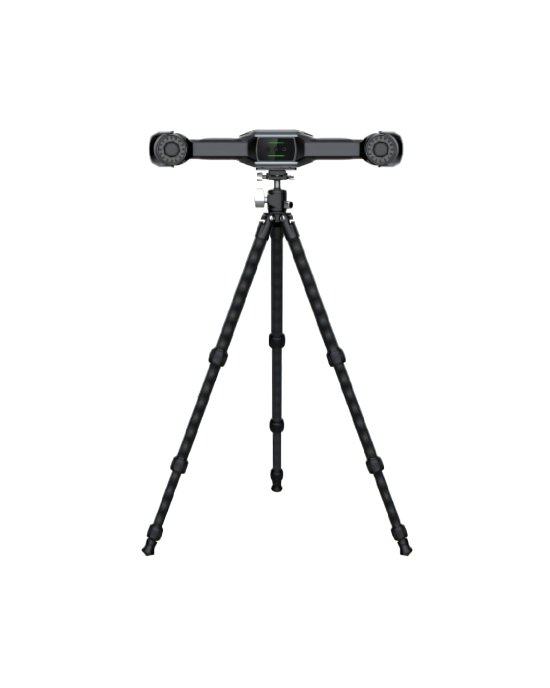

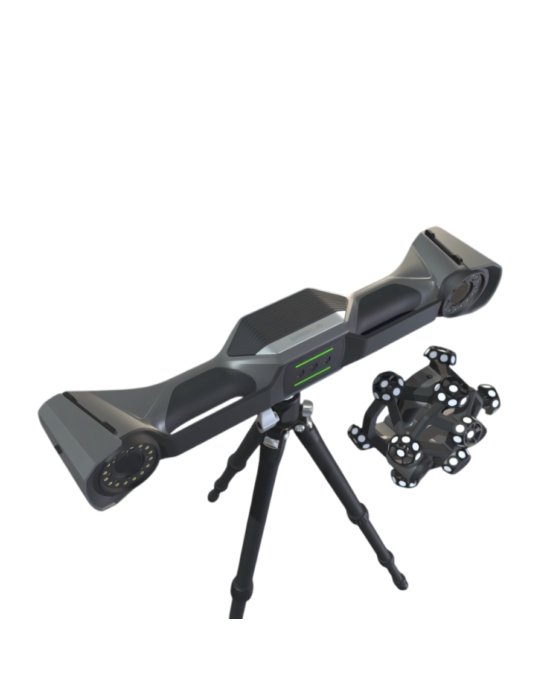

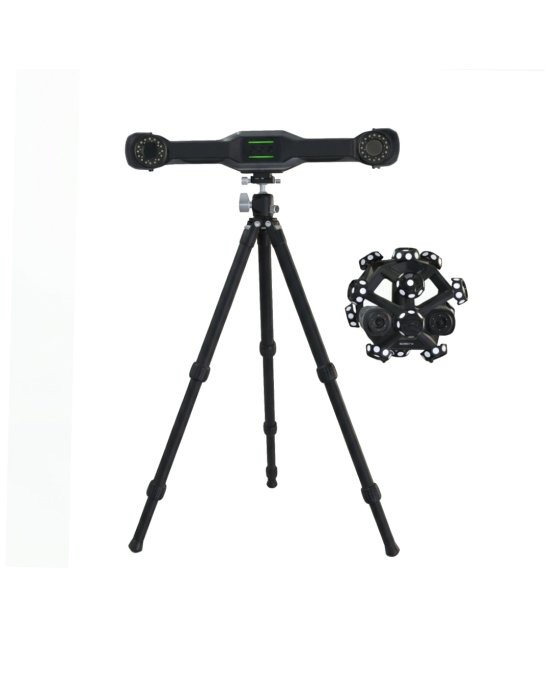

Shining 3D FreeScan Trak Nova+ is a professional optical 3D scanning system with dynamic tracking for high-precision measurement of large parts and complex geometries. The system consists of the TE Nova+ tracker and the detachable UE Nova+ handheld scanner. During dynamic tracking, the scanner's position is determined in real time, eliminating the need to place markers directly on the object's surface. The system supports wireless operation, scans at speeds of up to 7,600,000 points/s, and provides a stated accuracy of 0.02 mm. The maximum field of view is 2600 × 2200 mm.
Advantages of FreeScan Trak Nova+
- Marker-free scanning of parts. In dynamic tracking mode, the tracker determines the position of the handheld scanner in real time. This reduces the preparation required for measuring large objects and simplifies operator movement around the part.
- Fast data acquisition. With Nova+, the number of laser lines in high-speed mode has been increased to 62. The maximum scanning speed is 7,600,000 points/s, enabling faster digitization of large surfaces.
- Multiple modes for different geometries. TE Nova+ uses 62 laser lines for high-speed scanning, 25 parallel lines for detailed measurement, and a single laser line for deep pockets. The operator can switch modes according to the geometry of a specific area.
- Detachable handheld scanner. UE Nova+ can be detached from the tracking system and used separately for wide-area laser scanning. In this mode, a field of view of up to 2600 × 2200 mm is available.
- Operation without signal cables. Wireless modules transmit data during scanning, while integrated computing modules process the data. A fiber-optic connection mode is also available for wired operation.
- Accuracy control according to metrology standards. The system has a stated accuracy of 0.02 mm. Acceptance testing is performed in accordance with VDI/VDE 2634 Part 3 and ISO 10360 in the manufacturer's ISO/IEC 17025-accredited laboratory.

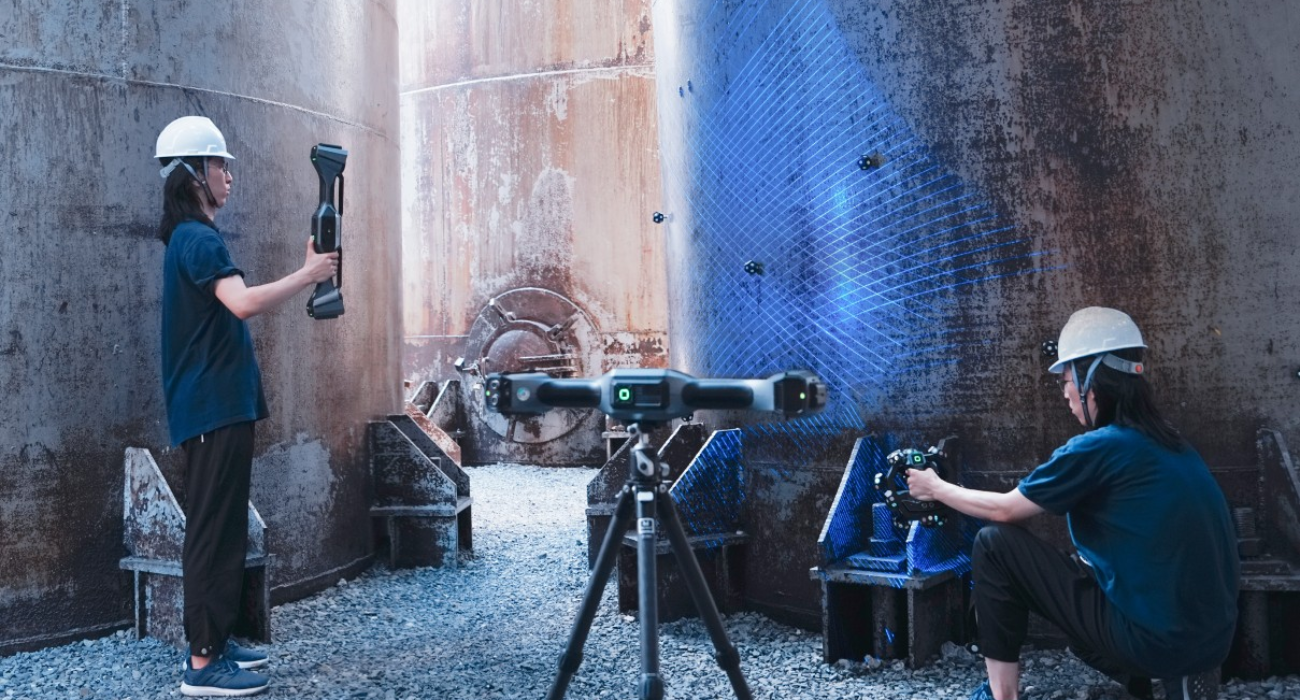

Dynamic Tracking Without Markers on the Object
TE Nova+ tracks the spatial position of UE Nova+ in real time throughout the entire scanning process. Markers are not required directly on the measured surface, reducing preparation time for large parts and structures.

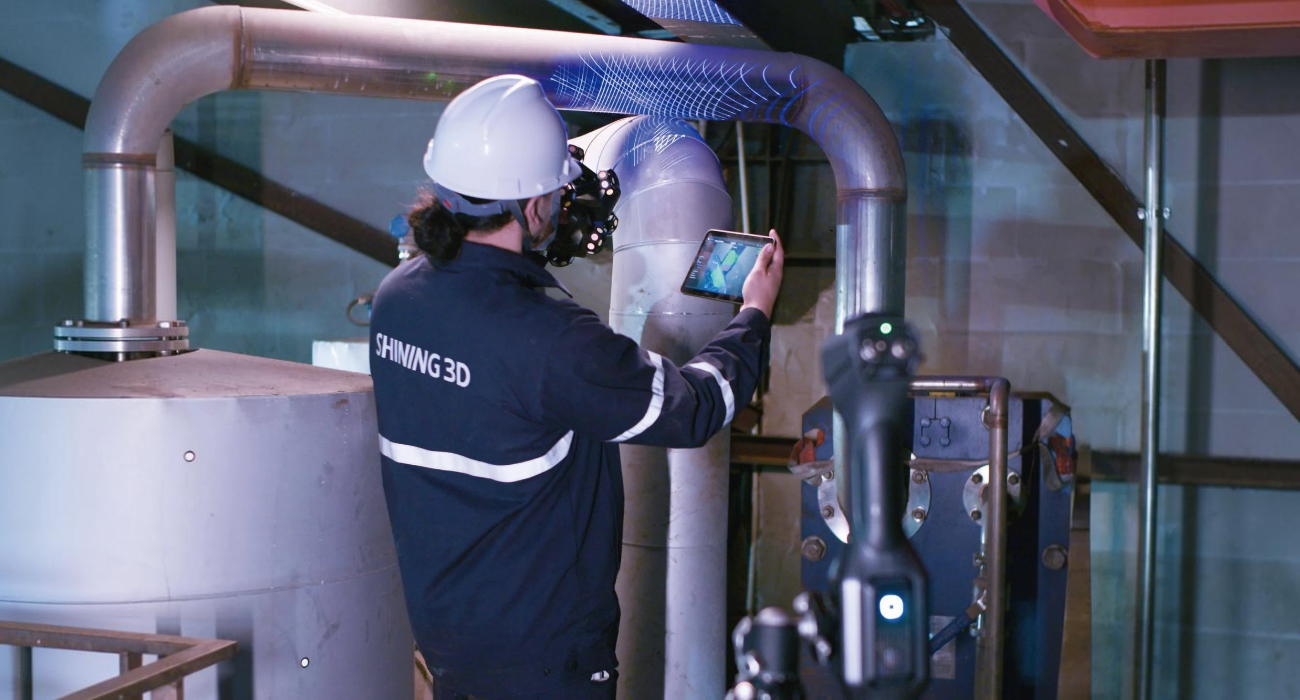

The operator can freely move the scanner around the object and capture geometric data from different directions. This approach is particularly convenient for body panels, industrial equipment, transportation components, and large structures. Wireless data transmission further simplifies movement around the object and operation in hard-to-reach areas.
High-Speed and Detailed 3D Scanning
TE Nova+ supports three laser scanning configurations. 62 laser lines are designed for fast acquisition of large-surface geometry. 25 parallel laser lines provide greater detail when measuring individual features. A single laser line is available for scanning deep pockets.
The maximum data acquisition speed reaches 7,600,000 points/s. This helps reduce the time required to digitize large parts without being limited to a single scanning mode. In standalone mode, UE Nova+ also supports high-speed scanning using 62 laser lines. For more detailed measurements, 7 parallel laser lines are available.

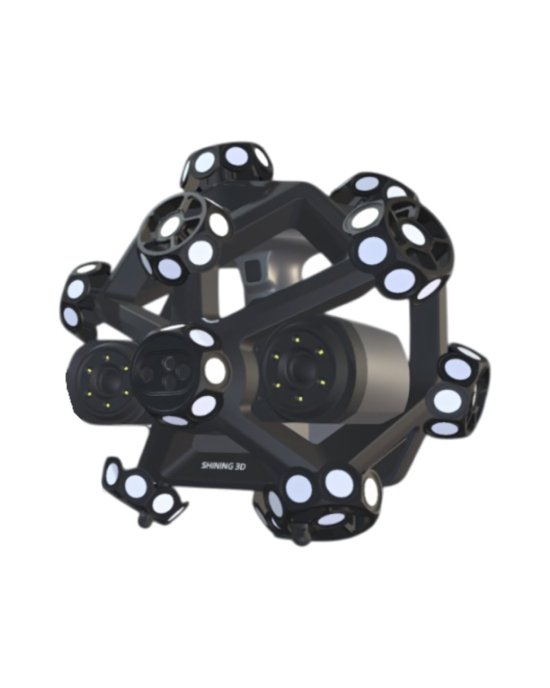

Detachable UE Nova+ Handheld Scanner
UE Nova+ can be detached from the tracking system and used for scanning in handheld mode. The maximum 2600 × 2200 mm field of view captures a large surface area and enables efficient digitization of large parts.
Data captured in different scanning modes can be combined during processing. This allows a single system to capture both the geometry of large surfaces and more detailed data from individual features.
VPG Video Photogrammetry
VPG video photogrammetry technology improves measurement stability when scanning large objects. It works together with a scale bar and determines the spatial position of markers from video data in real time.
The technology does not require coded markers and helps reduce accumulated errors over long distances. The stated volumetric accuracy of FreeScan Trak Nova+ with VPG is 0.046 + 0.012 mm/m.

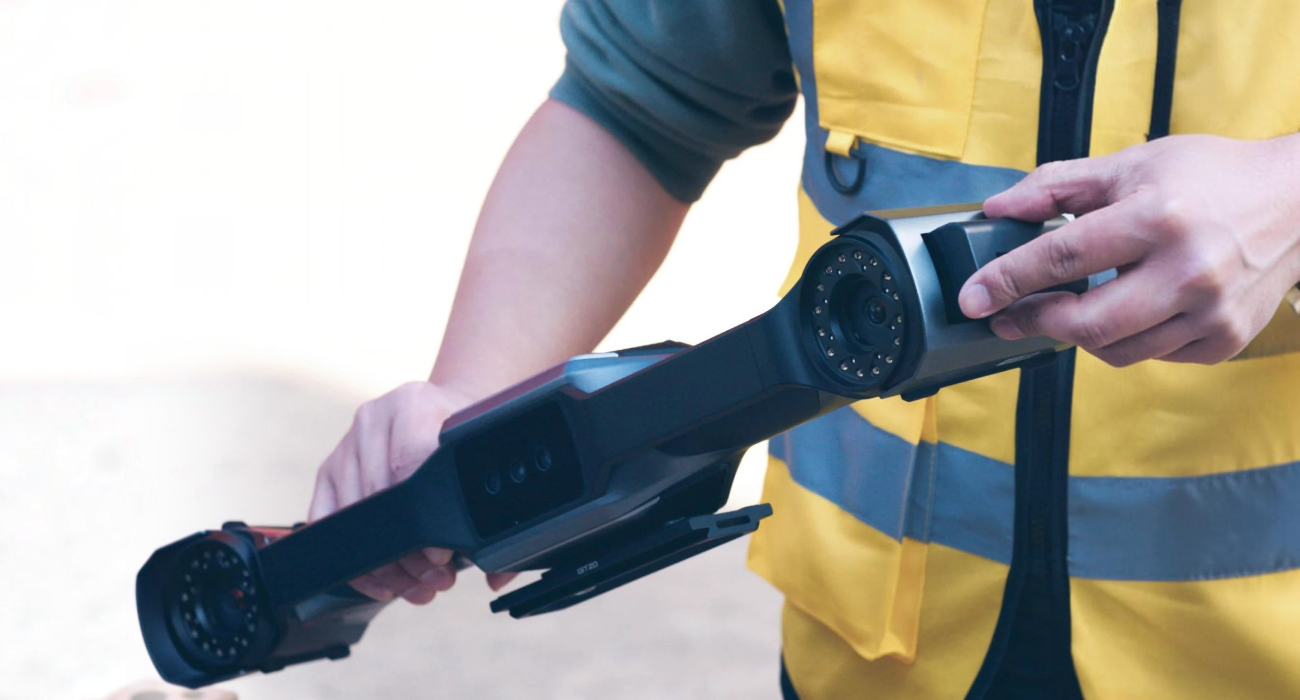

Wireless Operation and Swappable Batteries
TE Nova Series and UE Nova Series feature integrated wireless and computing modules for data transmission and processing. The absence of a signal cable between the operator and the stationary workstation makes it easier to move the scanner when measuring large structures. The system is powered by swappable batteries. Once a battery is depleted, it can be replaced to continue scanning. Data transmission via a fiber-optic connection is also supported.
3D Scan Data Processing
FreeScan Trak software combines results captured in different scanning modes into a single set of geometric data for further processing.
Intelligent resolution control adapts mesh density to surface curvature. Complex geometric areas are preserved with greater detail, while simpler surfaces are not overloaded with excessive data. Geometric feature recognition helps identify the boundaries of circular and rectangular holes and slots. Scan results can be used in SHINING3D Inspect, PolyWorks, Geomagic Control X, EXModel Pro, BlueStar Mapping, and Geomagic Design X.
Applications of SHINING 3D FreeScan Trak Nova+
FreeScan Trak Nova+ is suitable for industrial 3D scanning, metrology inspection, and creating digital models of parts of different sizes.
- Geometric inspection. Verification of the dimensions, shape, and spatial position of geometric features on manufactured parts.
- Reverse engineering. Capturing accurate digital geometry of physical products for subsequent creation and editing of CAD models.

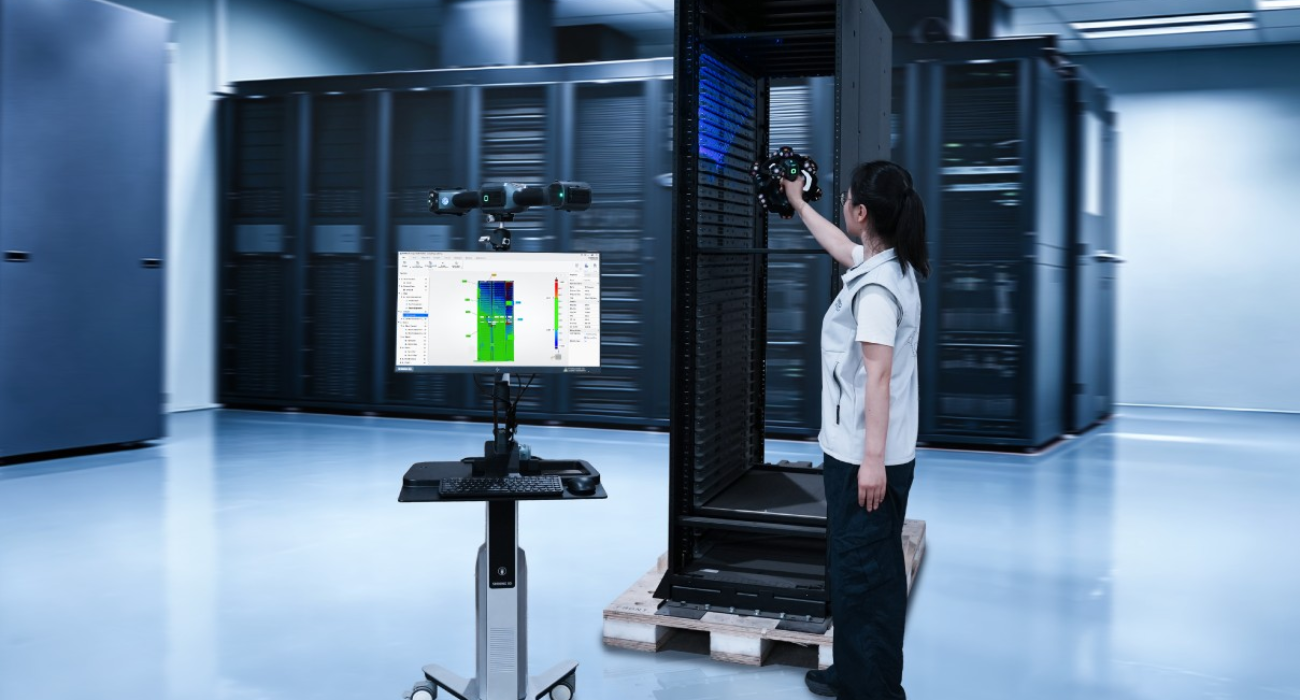

- Large structures. Digitization of large parts using a wide field of view and VPG technology.
- Automotive industry. Scanning body panels, vehicle components, tooling, and assembly parts.
- Mechanical engineering. Measurement of industrial parts, equipment, mechanisms, and construction machinery components.
- Railway, aerospace, and energy industries. Digitization of large components without being tied to a stationary measurement system.
- Production inspection. Mobile measurement of parts directly in production areas with the ability to quickly move the system between locations.
Technical Specifications of SHINING 3D FreeScan Trak Nova+
Scanning Modes and Speed
| Parameter | Value |
| TE Nova+ high-speed scanning | 62 laser lines |
| TE Nova+ detailed scanning | 25 parallel laser lines |
| TE Nova+ deep pocket scanning | 1 laser line |
| UE Nova+ high-speed scanning | 62 laser lines |
| UE Nova+ detailed scanning | 7 parallel laser lines |
| Maximum scanning speed | 7,600,000 points/s |
Accuracy and Measurement Parameters
| Parameter | Value |
| Accuracy | 0.02 mm |
| Volumetric accuracy | 0.062 mm for 12 m³ |
| Volumetric accuracy with VPG | 0.046 + 0.012 mm/m |
| Resolution | 0.01–10 mm |
| Maximum field of view | 2600 × 2200 mm |
| VPG | Yes, without coded markers |
Connectivity and Standards
| Parameter | Value |
| Data transmission | Wireless or via fiber-optic connection |
| Protection | IP50 |
| Certifications | CE, FCC, RoHS, WEEE, KC, FDA, UKCA, TELEC, TiSAX |
| Acceptance testing | VDI/VDE 2634 Part 3 and ISO 10360 |
| Accuracy verification laboratory | ISO/IEC 17025 |
| TE Nova Series weight | 1.2 kg |
| UE Nova Series weight | 1.6 kg |
