Wireless 3D Scanning System with Dynamic Tracking

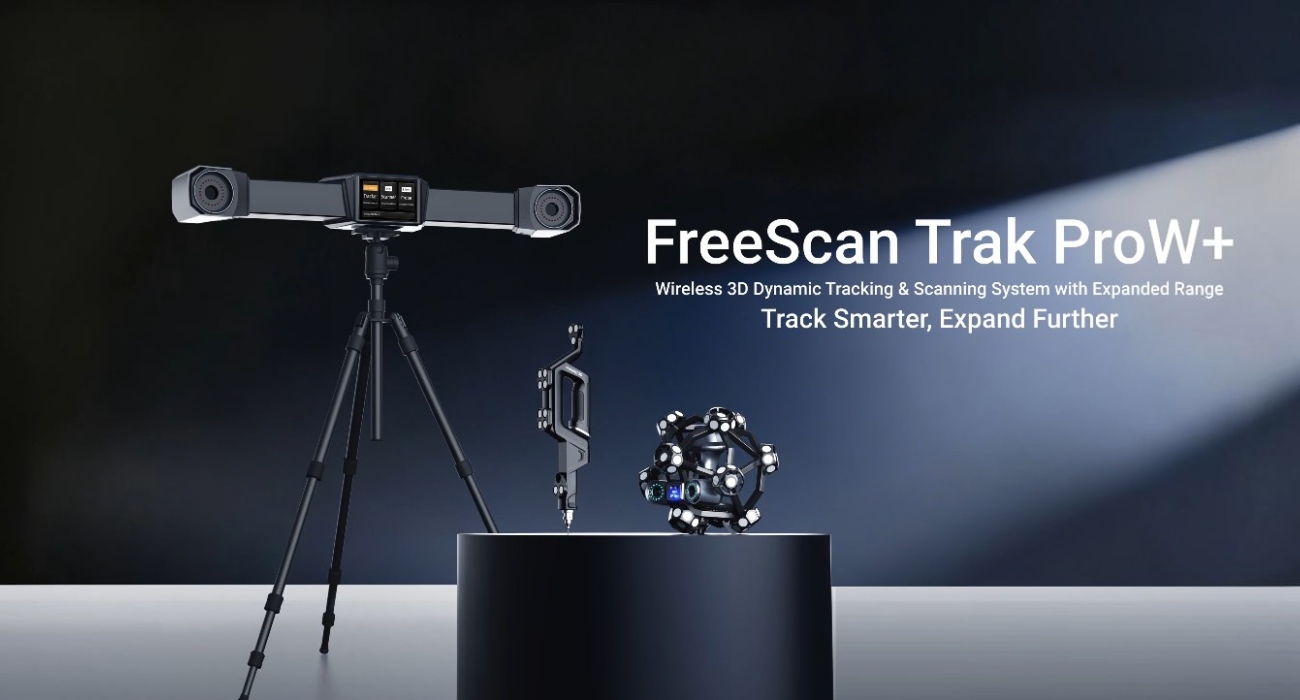

SHINING 3D FreeScan Trak ProW+ is a wireless system for 3D scanning and precise measurement of large parts and objects. The tracker determines the position of the handheld 3D scanner in real time, eliminating the need to apply markers directly to the part during operation. From a single position, the system can track the scanner within a volume of up to 156 m³ at a distance of up to 8.6 m. Wireless connectivity allows the operator to move freely around the object, while data is processed and transmitted in real time.
Key Technical Advantages of FreeScan Trak ProW+
- Precise measurements. FreeScan Trak ProW+ is suitable for checking the dimensions and geometry of parts. The system accuracy is 0.023 mm.
- Large tracking volume. The system enables scanning of large objects without frequently repositioning the tracker. From a single position, the tracking volume reaches up to 156 m³, while the maximum distance is 8.6 m.
- High-speed scanning. 93 crossed laser lines enable fast data acquisition from large surfaces and complex-shaped parts. The scanning speed reaches up to 7 600 000 points/s.
- Less scanning preparation. In tracking mode, there is no need to apply markers directly to the part. The tracker determines the scanner's position in real time.
- Wireless operation. The operator can move more freely around large parts without a constant cable connection. Integrated modules process and transmit data in real time.
- Multiple scanning modes. 93 crossed laser lines are used for high-speed data acquisition, 25 parallel laser lines for detailed scanning, and 1 laser line for deep holes and recessed areas.
- Accuracy when scanning large objects. VPG technology helps maintain measurement accuracy on large parts. It works together with a calibration bar and determines marker positions from video data without using coded markers. Volumetric accuracy with VPG is 0.044 mm + 0.012 mm/m.
Tracking Large Objects up to 156 m³
FreeScan Trak ProW+ is designed for scanning large objects. The maximum tracking distance is 8.6 m, while the working volume from a single position reaches 156 m³. With such a large tracking volume, the operator can scan a significant portion of an object without frequently repositioning the tracker. If the entire object cannot be scanned from one position, the tracker can be relocated. The expanded tracking volume reduces the need for repositioning, simplifying work with large parts and objects.
Marker-Free Scanning

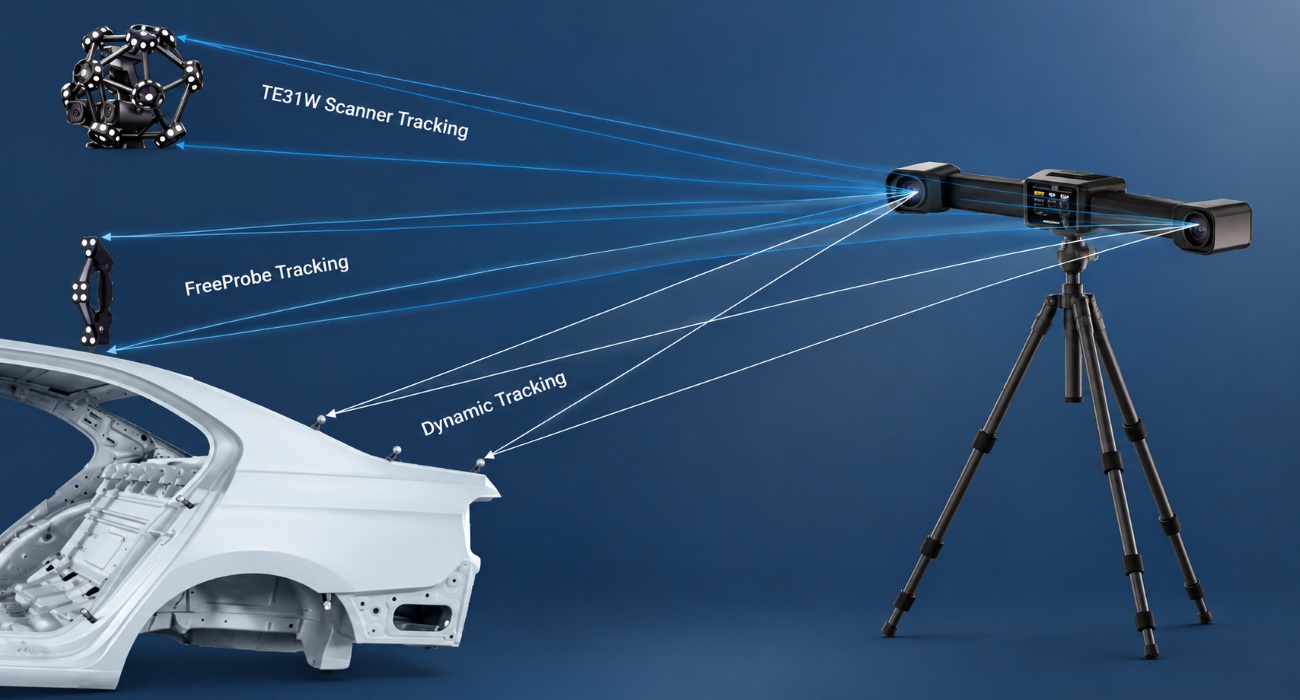

During dynamic tracking, the tracker determines the scanner's position in real time. Targets located on the scanner itself are used for this purpose, so there is no need to apply markers to the surface of the part before scanning.
This approach reduces scanning preparation time, especially when working with large parts. At the same time, marker-free operation applies specifically to dynamic tracking mode. Markers may be used in other operating modes of the system.
Laser 3D Scanning Modes
- 93 crossed laser lines for high-speed scanning. This mode enables fast data acquisition from large surface areas and reduces scanning time.
- 25 parallel laser lines for detailed scanning. This mode is used for areas where the shape and fine surface details need to be captured more precisely.
- 1 laser line for deep recesses. This mode helps scan narrow and deep areas that are difficult to capture using multiple laser lines simultaneously.
Wireless 3D Scanning
FreeScan Trak ProW+ is equipped with integrated computing and wireless modules. During wireless operation, the operator can move the handheld scanner around the object without a cable, while the system processes data in real time and provides wireless data transmission.
The integrated display is designed for quick viewing of key device information during measurement. At the same time, the specification provides not only wireless connectivity but also a wired connection via a fiber-optic cable.
VPG Video Photogrammetry
FreeScan Trak ProW+ uses SHINING 3D's patented VPG video photogrammetry technology. The technology works together with a calibration bar and helps determine marker positions in real time using video data. Coded markers are not required for VPG operation.
Volumetric accuracy with VPG is 0.044 mm + 0.012 mm/m. VPG helps maintain accuracy when scanning large parts and reduce errors that may increase with the size of the object.
Measurement Accuracy Depending on Working Volume
| Working Volume | Distance | Volumetric Accuracy |
| 12 m³ | 3.5 m | 0.046 mm |
| 36 m³ | 5 m | 0.063 mm |
| 60 m³ | 6 m | 0.088 mm |
| 100 m³ | 7.2 m | 0.125 mm |
| 156 m³ | 8.6 m | 0.156 mm |
As the distance and covered working volume increase, the volumetric accuracy value changes from 0.046 mm for 12 m³ to 0.156 mm for the maximum 156 m³ volume.
Geometry Inspection in SHINING3D Inspect
SHINING3D Inspect is designed for working with 3D measurement data, inspecting parts, and creating reports. The software enables dimensional inspection, part quality verification, and deviation detection. SHINING3D Inspect supports sequential inspection, provides dedicated tools for different tasks, and allows reports to be configured according to user requirements.
FreeScan Trak ProW+ Technical Specifications
3D Scanning Parameters
| Parameter | Value |
| Accuracy | 0.023 mm |
| Volumetric accuracy with VPG | 0.044 mm + 0.012 mm/m |
| Scanning speed | Up to 7 600 000 points/s |
| Resolution | From 0.01 to 10 mm |
| Maximum field of view (FOV) | 800 × 700 mm |
| VPG | Supported, no coded markers required |
| High-speed scanning | 93 laser lines |
| Detailed scanning | 25 parallel laser lines |
| Deep recess scanning | 1 laser line |
| Working distance | 300 mm |
| Depth of field | 400 mm |
| Net dimensions | 189 × 81 × 53 mm |
| Net weight | 0.550 kg |
Connectivity and Operating Conditions
| Parameter | Value |
| Connectivity | Wi-Fi 7 / USB 3.0 |
| Connection modes | Wireless mode, wired mode via fiber-optic cable |
| File formats | STL, OBJ, PLY, ASC, 3MF, P3 |
| Operating temperature | From -10 to 40 °C |
| Operating humidity | From 10 to 90% RH |
| Certifications | CE, FCC, RoHS, WEEE, KC, FDA, UKCA, IP50, TELEC, TiSAX |
| Acceptance testing standards | VDI/VDE 2634 Part 3, ISO 10360 |
System Requirements
| Parameter | Value |
| Operating system | Windows 10 Pro 64-bit / Windows 11 Pro 64-bit |
| Processor | Intel Core i7 / i9 or Intel Core Ultra 9 285HX / 275HX and above |
| Graphics card | NVIDIA GeForce RTX 5080 Laptop GPU or above |
| Video memory | From 12 GB to 16 GB or more |
| RAM | 64 GB |
| PC interface | USB 3.0 port |
Order SHINING 3D FreeScan Trak ProW+
SHINING 3D FreeScan Trak ProW+ is suitable for metrology-grade 3D scanning, geometry inspection, and measurement of large-scale parts where dynamic tracking, a large working volume, and wireless scanner movement are required. Order FreeScan Trak ProW+ on our website and get expert advice on system configuration and delivery options.
