- Stock: In Stock
- Model: 00-00012384

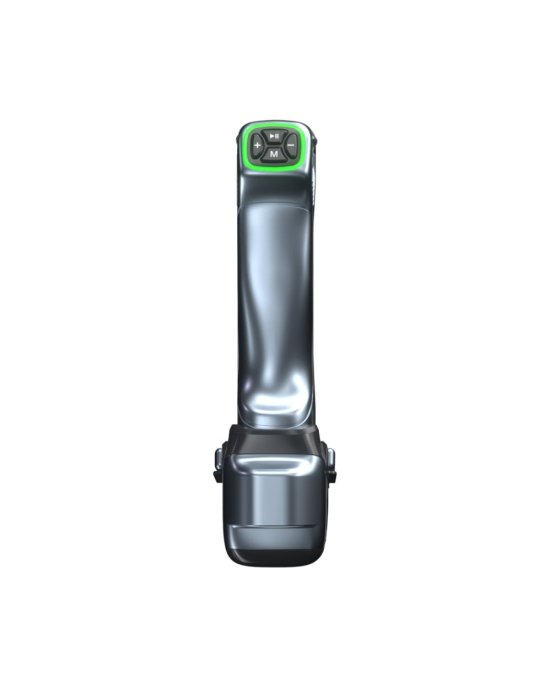

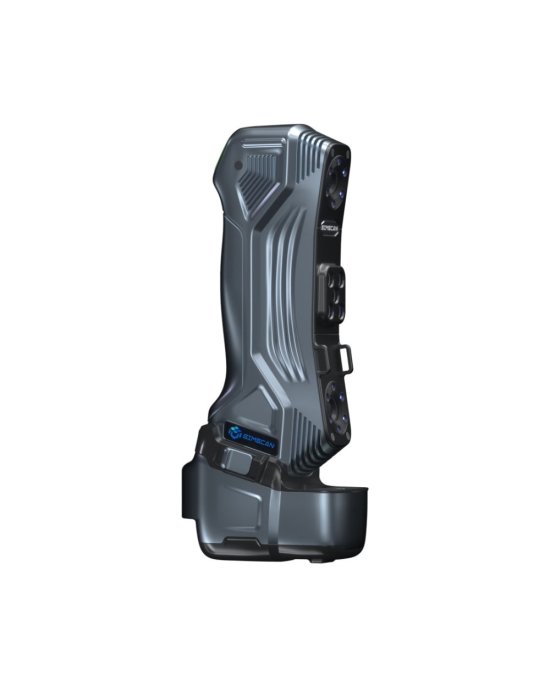

Introducing the SIMSCAN-E, the intelligent, wireless, palm-sized 3D scanner that redefines on-site metrology. This device sets a new standard for flexible 3D scanning by combining a lightweight, ergonomic design with state-of-the-art performance. Featuring advanced edge computing and seamless wireless data transfer, the SIMSCAN-E delivers metrology-grade accuracy and efficiency for professionals who need to capture complex data with complete freedom of movement.
Key Features and Advantages
True Portability, Uninterrupted Power

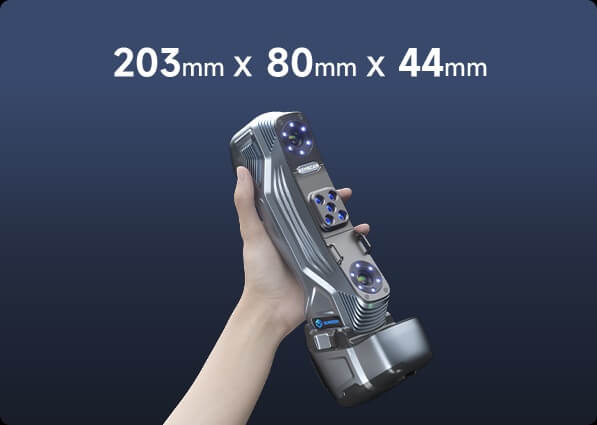

The SIMSCAN-E's full-metal housing is a masterpiece of compact engineering. Weighing only 600g and measuring just 203 x 80 x 44 mm, it offers unparalleled simplicity for one-handed scanning.

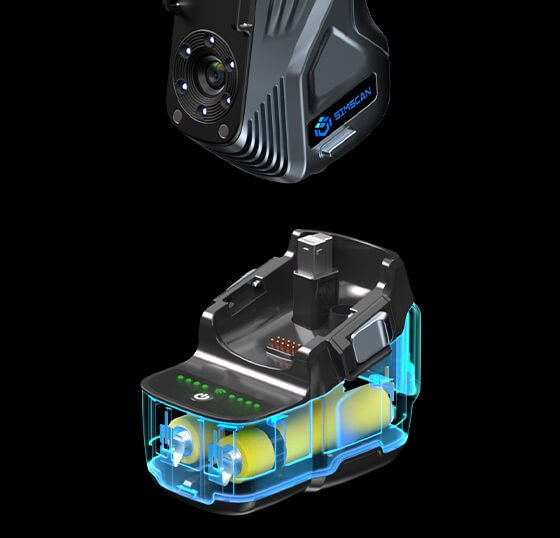

Say goodbye to restrictive cables and enjoy the freedom to scan on a busy shop floor, at height, or in the field. A hot-swappable dual-battery system ensures continuous operation, allowing you to easily swap power sources without ever interrupting your scan, even during the most demanding projects.
Extreme Speed for Maximum Efficiency

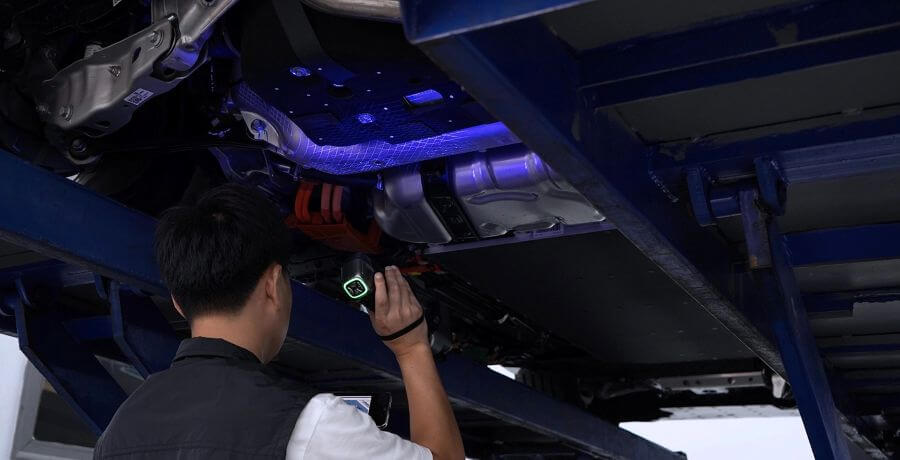

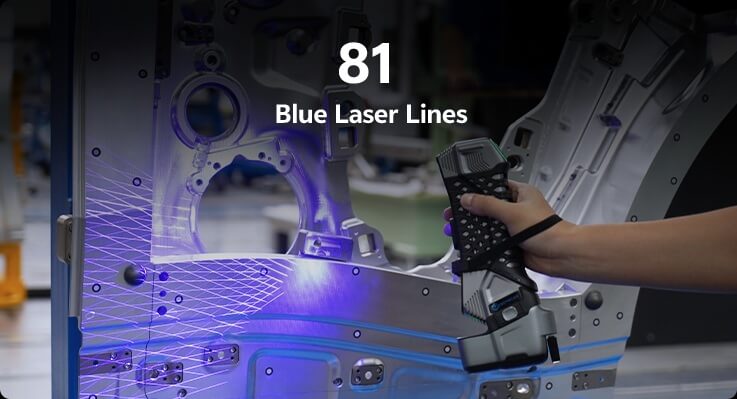

Powered by a sophisticated algorithm and 81 parallel blue laser lines, the SIMSCAN-E achieves a phenomenal measurement rate of up to 6.3 million measurements per second.
This, combined with a 180-FPS frame rate, guarantees an exceptionally efficient and smooth scanning experience. Capture vast surfaces and intricate geometries in a fraction of the time, dramatically accelerating your entire workflow from initial data capture to the final inspection report.

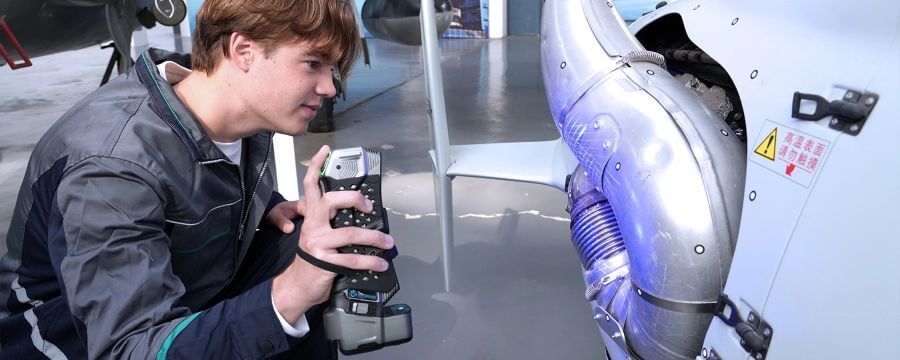

Metrology-Grade Detail and Accuracy
Equipped with high-definition industrial cameras and advanced image enhancement algorithms, the SIMSCAN-E captures every minute feature with remarkable precision. Its measurement accuracy of up to 0.020 mm meets the rigorous demands of industrial-grade 3D scanning, making it the ideal tool for quality control, reverse engineering, and high-fidelity digital archiving where every detail matters.

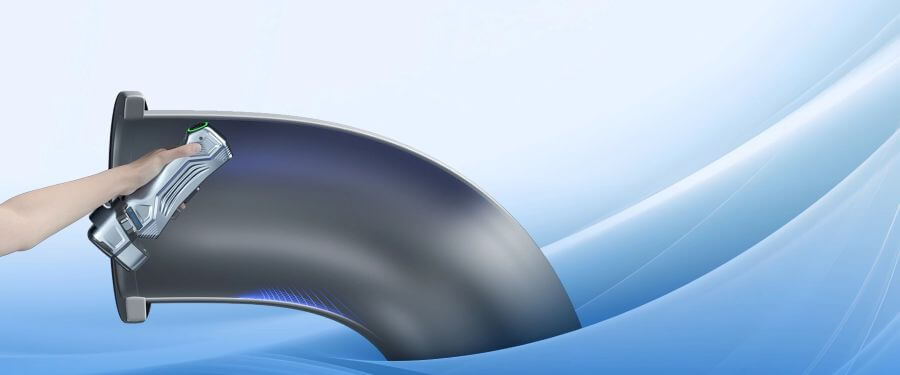

Mastering Confined and Narrow Spaces
The scanner's short-distance camera design provides a steep viewing angle, greatly enhancing its capability to scan hidden and hard-to-reach areas. This allows you to capture complete, high-integrity 3D data from within gaps, slots, deep holes, and channels, ensuring you have a comprehensive digital model for design, inspection, and analysis.
Versatile Scanning Modes for Any Scenario
- Ultra-fast Scanning: Deploys 81 blue laser lines for maximum efficiency when capturing the geometry of large parts and surfaces.

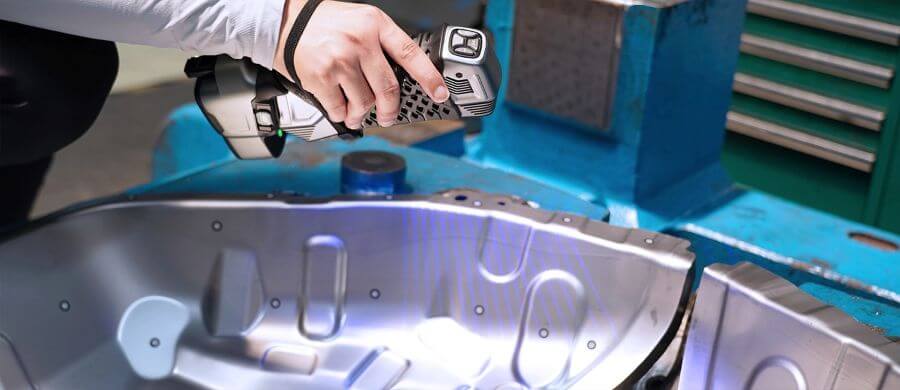

- Hyperfine Scanning: Utilizes 17 parallel blue laser lines for the rapid and detailed capture of intricate features and complex structures.
- Deep Hole Scanning: Employs a single blue laser line to precisely measure the inside of deep holes and other hard-to-reach areas.

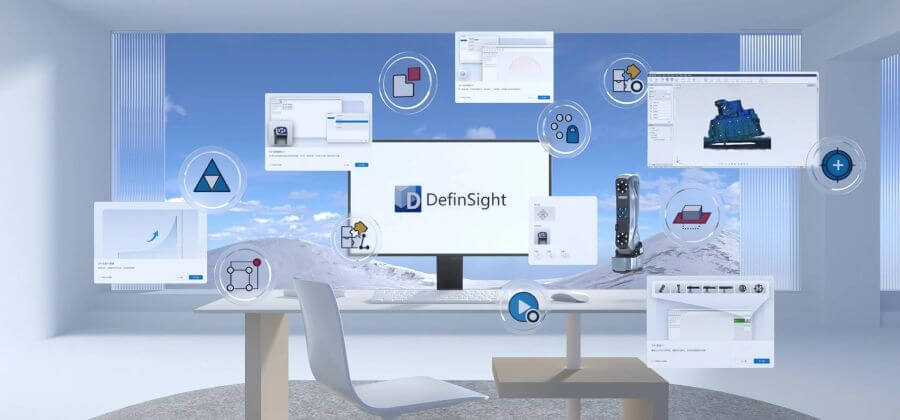

Intuitive Software Platform: DefinSight
The SIMSCAN-E operates on the brand-new DefinSight software platform. Equipped with cutting-edge algorithms and an innovative, user-centered layout, it simplifies and accelerates the entire 3D scanning process. From a smart guide that makes it easy for beginners to get started, to real-time meshing and customizable button controls, DefinSight is designed to deliver a powerful yet intuitive workflow.
Technical Specifications
- Laser Lines: 81 blue laser lines (Ultra-fast), 17 parallel blue lines (Hyperfine), 1 extra blue line (Deep hole)
- Accuracy: Up to 0.020 mm
- Volumetric Accuracy: 0.015 mm + 0.035 mm/m
- Scanning Rate: Up to 6,300,000 measurements/s
- Scanning Area: Up to 700 x 600 mm
- Resolution: Up to 0.020 mm
- Stand-off Distance: 300 mm
- Depth of Field: 550 mm
- Wireless Standard: Wi-Fi 6
- Weight: 600 g
- Dimensions: 203 × 80 × 44 mm
- Output Formats: stl, obj, ply, asc, igs, txt, and more
Your Partner in Professional Scanning
At 3D Scan, our deep understanding of 3D scanning technology, cultivated since 2012, is your advantage. We are uniquely positioned to guide you to the perfect solution for your needs. We offer expert consultations and dedicated, qualified support before, during, and after your purchase. When you invest in a SIMSCAN-E with us, you also receive complimentary professional training to ensure you unlock its full potential. Contact us today to learn more or to schedule a demonstration.
